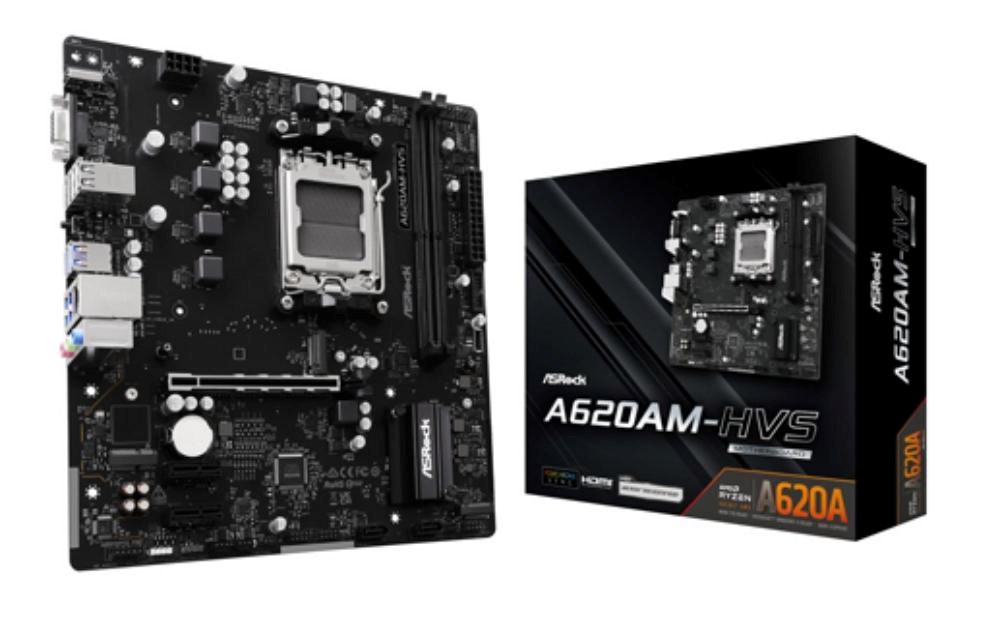

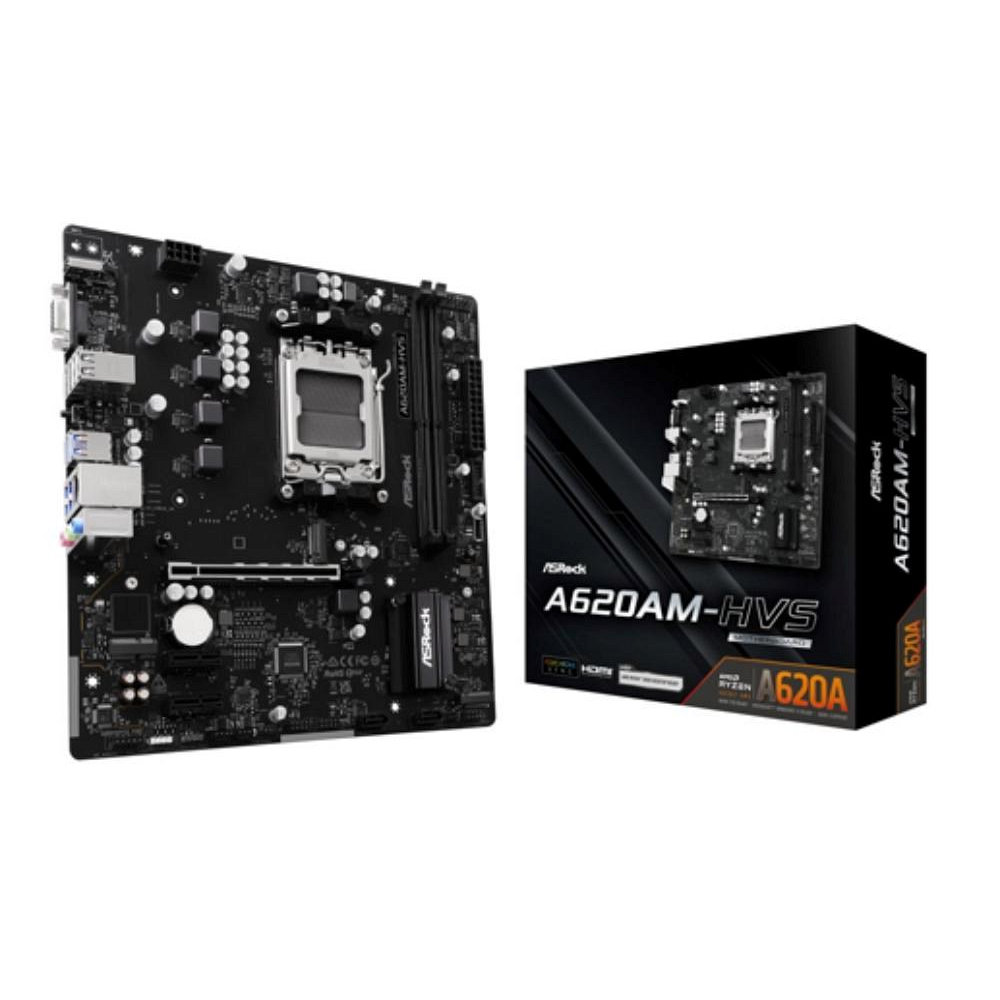

ASROCK A620AM-HVS
Unique Feature
Superb Productivity
- Dual Channel DDR5
Rock-Solid Durability
- 4+1+1 Power Phase, Dr.MOS for Vcore
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
CPU
- Supports AMD Socket AM5 RyzenTM 9000, 8000 and 7000 Series Processors* * Please refer to CPU Support List on ASRock's website for more information. (http://www.asrock.com/) * The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. (http://www.asrock.com/)
Chipset
- AMD A620A
Memory
Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Expansion Slots
- Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)*
- Max. capacity of system memory: 128GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for
Overclocking (EXPO) memory modules
* Please refer to Memory Support List on ASRock's website for more information.
(http://www.asrock.com/)
Graphics
Integrated AMD RDNATM graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and
max. resolution up to 4K 120Hz
- 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
USB
CPU:
- 3 x USB 3.2 Gen1 Type-A (Rear (USB32_2 and USB32_34))
Chipset:
- 1 x USB 3.2 Gen1 Type-C (Front)
- 3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_1), 2 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)
* All USB ports support ESD Protection
Rear Panel I/O Ports
- 2 x Antenna Mounting Points
- 1 x D-Sub Port
- 1 x HDMI Port
- 4 x USB 3.2 Gen1 Type-A Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone
Storage
CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s &
PCIe Gen3x4 (32 Gb/s) modes*
- 2 x SATA3 6.0 Gb/s Internal I/O Connectorss
* M2_1 is the first priority for M.2 installation.
* Supports NVMe SSD as boot disks
RAID
- Supports RAID 0 and RAID 1 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
* Requires additional M.2 NVMe expansion cards to support RAID 10
Connector
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Internal I/O Connectors (4-pin) (Smart Fan Speed Control)***
- 3 x Chassis/Water Pump Fan Internal I/O Connectorss (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Internal I/O Connectors
- 1 x 8 pin 12V Power Internal I/O Connectors (Hi-Density Power Internal I/O Connectors)
- 1 x Front Panel Audio Internal I/O Connectors
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header
* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
*** CHA_FAN1~3/WP support the fan power up to 3A (36W).
*** CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
BIOS Feature
- 256Mb AMI UEFI Legal BIOS with GUI support
Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
OS
- Microsoft Windows 10 64-bit / 11 64-bit
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Accessories
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket
