| CPU |
AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors |
| Chipset |
AMD A520 |
| Memory |
2 x DIMM, Max. 64GB, DDR4 5100(O.C)/4866(O.C)/4600(O.C)/4400(O.C)/4000(O.C)/3200/3000/2666/2400/2133 MHz, Dual Channel, Un-buffered Memory |
| Graphic |
1 x DisplayPort 1.4, 1 x HDMI™ 2.1 |
| Expansion Slots |
1 x PCIe 3.0 x16 slot (supports x16 mode), 1 x PCIe 3.0 x1 slot |
| Storage |
1 x M.2 slot (Key M), type 2242/2260/2280 (PCIe 3.0 x4 & SATA modes), 4 x SATA 6Gb/s ports |
| Ethernet |
1 x Realtek 1Gb Ethernet, ASUS LANGuard |
| USB |
Rear: 4 x USB 5Gbps (Type-A), 2 x USB 2.0 (Type-A)
Front: 1 x USB 5Gbps (Type-C), 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (3 ports) |
| Audio |
Realtek 7.1 Surround Sound High Definition Audio CODEC, Audio Shielding, Premium audio capacitors |

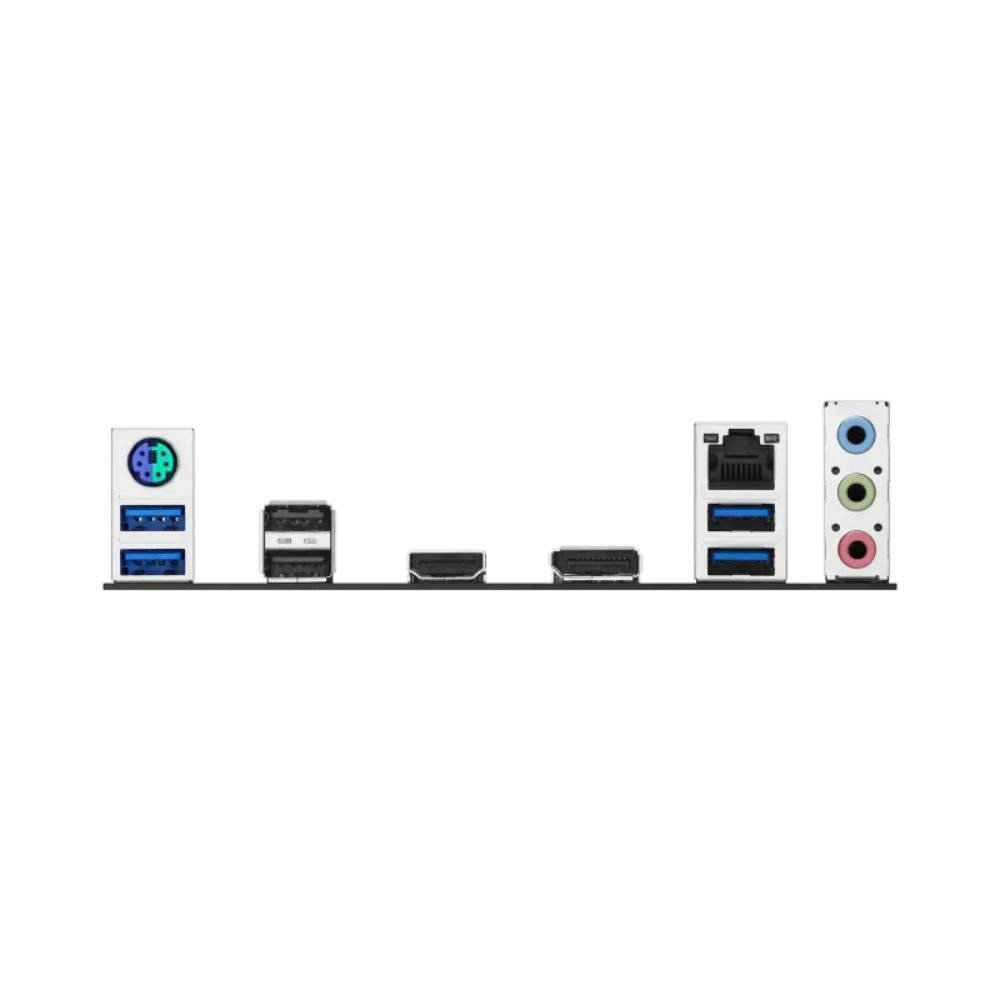

| Back I/O Ports |
4 x USB 5Gbps (Type-A), 2 x USB 2.0 (Type-A), 1 x DisplayPort, 1 x HDMI™, 1 x Ethernet, 3 x Audio jacks, 1 x PS/2 combo |
| Internal I/O |
3 x Addressable RGB Gen 2 headers, 1 x USB 5Gbps (Type-C), USB headers, 1 x M.2, 4 x SATA, Fan headers, 24-pin/8-pin power, Clear CMOS, COM, S/PDIF |
| Special Features |
ASUS 5X PROTECTION III, Q-Design (Q-DIMM, Q-LED Core, Q-Slot), Aura Sync |
| Software |
Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+), ASUS DriverHub, UEFI BIOS |
| BIOS |
16MB (128Mb) Flash ROM, UEFI AMI BIOS |
| OS |
Windows 11, Windows 10 64-bit |
| Form Factor |
micro-ATX, 8.9 inch x 8.9 inch (22.6 cm x 22.6 cm) |
