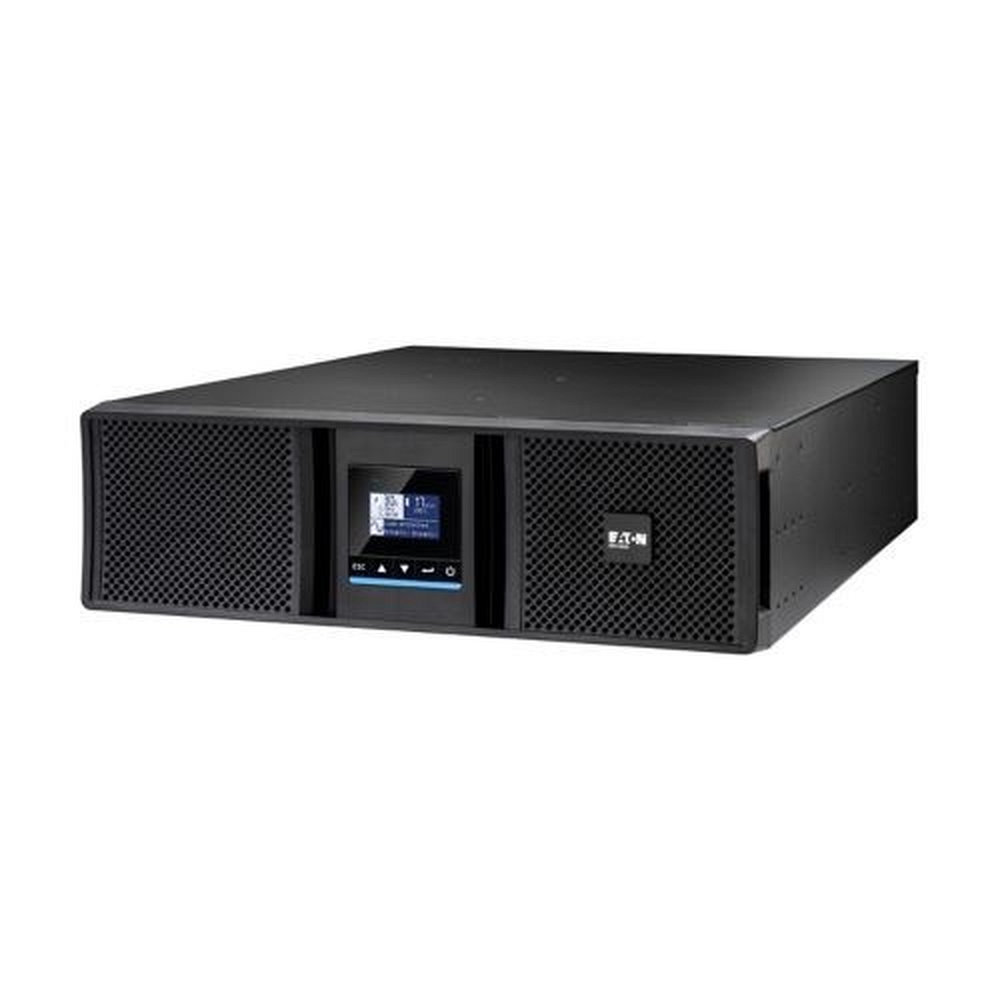

Obrázek Eaton 9SX5000i RT3U G2, ON- LINE, UPS, RACK 3U (možno dokoupit EBM: 9SXEBM180RT3UG2 )
Obrázek Eaton 9SX5000i RT3U G2, ON- LINE, UPS, RACK 3U (možno dokoupit EBM: 9SXEBM180RT3UG2 ) Obrázek Eaton 9SX5000i RT3U G2, ON- LINE, UPS, RACK 3U (možno dokoupit EBM: 9SXEBM180RT3UG2 ) Obrázek Eaton 9SX5000i RT3U G2, ON- LINE, UPS, RACK 3U (možno dokoupit EBM: 9SXEBM180RT3UG2 ) Obrázek Eaton 9SX5000i RT3U G2, ON- LINE, UPS, RACK 3U (možno dokoupit EBM: 9SXEBM180RT3UG2 )

Eaton 9SX5000i RT3U G2, ON- LINE, UPS, RACK 3U (možno dokoupit EBM: 9SXEBM180RT3UG2 )

Počet výstupních zásuvek:4; Použití:Server, Data Center; Provedení:Tower/Rack; Zdánlivý výkon VA:5000; Výška v Racku:3U; Topologie:On-Line; Fáze (Vstup/Výstup):1:1; Komunikace:USB, RS232; Možnosti:Volitelně Management karta, Prodloužení záložního času; Typ výstupu:IEC 13, IEC 19, Svorkovnice
Výrobce: Eaton
Dostupnost: Není skladem - je u dodavatele na objednání.
Kód: 149590
Typové označení výrobce : 9SX5KIRT3UG2
GTIN (EAN): 3553340710650
dodací lhůta : Na dotaz
90 478,85 Kč

General specifications

Product Name
Eaton 9SX Gen2 UPS
Catalog Number
9SX5KIRT3UG2
EAN
3553340710650
Product Length/Depth
684 mm
Product Height
130 mm
Product Width
440 mm
Product Weight
43.1 kg
Warranty
2 year
Compliances
LVD Directive (CB)
EMC Directive
RoHS Directive
REACH
WEEE Directive
Packaging Directive
Batteries Directive
Certifications
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
ENERGY STAR certified
CE
cULus
UKCA
Cm
Ukr
RCM
KCC
BSMI
Model Code
Eaton 9SX 5000i RT3U G2

Technické údaje produktu

Special features
  • Double conversion topology
  • Constantly regulates voltage and frequency
  • Up to 96.7% Energy efficient, Energy Star qualified, reduce energy and cooling costs
  • 3U form factor
  • Provides more real power (watts) to protect more equipment with a unity power factor
  • Internal bypass allows service continuity in case of UPS fault
  • Graphical LCD display
  • Rackmounting kit delivered as standard
  • Hot swappable batteries
Topology
Online/Double-conversion
Form factor
Rack/tower
Rack size
3U
Construction type
482.6 mm (19 inch) device
Color
Black
VA rating
5000 VA
Wattage
5000W
Rack mounting kit
Yes
Package contents
  • UPS
  • (2) cable glands
  • (2) IEC-IEC output cables (1,2m)
  • USB cable (1,8m)
  • Cable locking systems
  • Supports for tower mounting
  • Rack-mounting kit with brackets and slides for UPS
  • Safety instructions
  • Quickstart guide
Internal bypass
Yes
Hot swap power
No
Auto shutdown function
Yes
Primary frequency - max
70 Hz
Primary frequency - min
40 Hz
Input connection
Hardwired/fixed connection
Input nominal voltage
230V default (200/208/220/230/240V)
Nominal frequency
50/60 Hz
Input frequency range
40-70 Hz
Input power factor
>.99
Receptacle
(8) C13, (3) C19, Hardwired
Number of Outputs C13
8
