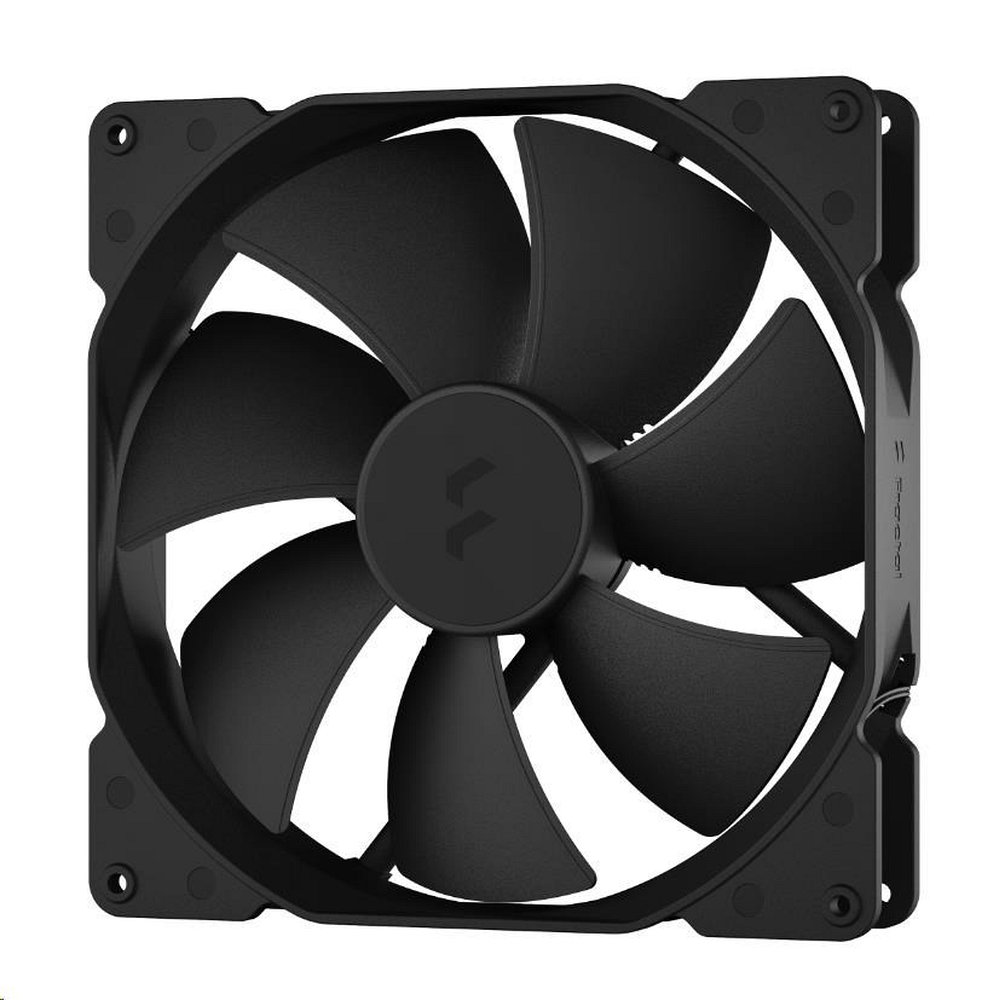

FRACTAL DESIGN ventilátor Dynamic X2 GP PWM,180mm
Typ chladiče:Aktivní; Využití chladiče:Do PC skříně; Velikost ventilátoru:180x180; Napájecí konektor:4pin
Dostupnost:
na objednávku - obvykle (14 dnů).
Kód:
1208168
Typové označení výrobce :
FD-FAN-DYN-X2-GP18-PWM-BK
Dynamic X2 GP-18 PWM
The Dynamic X2 GP-18 is a powerful 180 mm fan that packs a mean punch in the air-flow department. Massive blades, stout 38 mm thickness, and a wide 300-1200 RPM range with PWM control allow the GP-18 to yield remarkably high airflow while remaining exceptionally quiet.
- Massive 180 x 38 mm fan that yields remarkably high airflow while remaining very quiet
- High-grade LLS bearing with 90,000-hour MTTF delivers long-lasting dependability
- PWM support offers a wide 300-1200 RPM speed range for silent operation under lighter loads and maximum airflow during more demanding activity
TECHNICAL SPECIFICATIONS
| Size |
180 x 180 x 38 mm |
| Screw hole pattern |
165 x 165 mm |
| Fan Connector |
4-pin |
| Bearing |
LLS |
| Number of blades |
7 |
| Rotation speed |
300 – 1200 RPM |
| Noise level |
16 – 35.4 dB(A) |
| Max airflow |
44.9 – 153.7 CFM |
| Max airflow |
76.33 – 261.29 m3/h |
| Max pressure |
0.4 – 2.26 mmH2O |
| Input power |
4.2W at 12VDC |
| Maximum rated input current |
0.35A |
| Nominal input Voltage |
12V |
| Minimum startup voltage |
6V |
| MTBF |
90,000 hrs |
| Fan weight |
499 g |
| Cable length |
1000 mm |
| Cable type |
Black ribbon cable |
