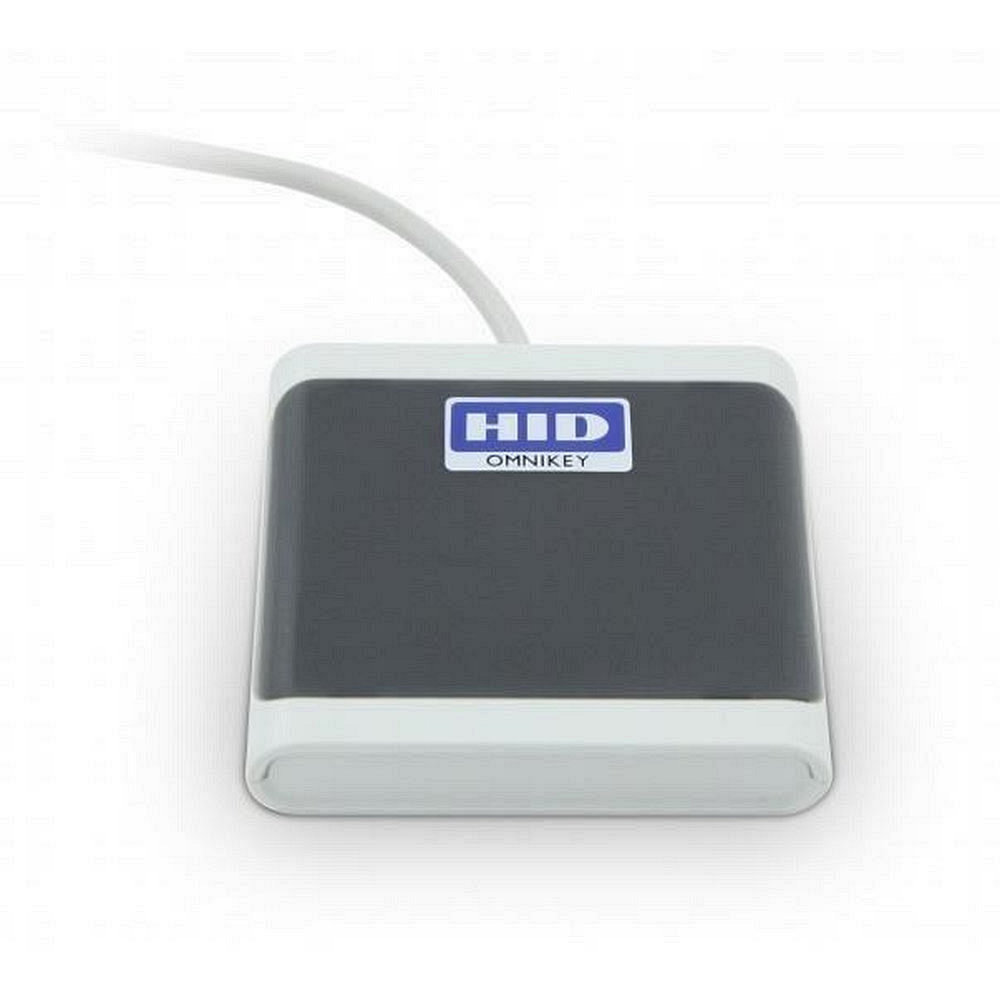

OMNIKEY 5022 CL RFID čtečka USB-HID 13,56Mhz
Čtená média:RFID; Konektivita:USB
Dostupnost:
Není skladem - je u dodavatele na objednání.
Kód:
3061601
Typové označení výrobce :
R50220318-GR
GTIN (EAN):
639399027949
The HID-R50220318-XX is an Omnikey USB Reader from HID. That is 5022 contactless high frequency smart card reader. The OMNIKEY 5022 reader is an ideal solution for healthcare, pharmaceutical, financial services, enterprise, government and other organizations seeking higher security and access management. The reader eliminates the need to install drivers, and can be used with standard PCs and workstations, as well as with thin and zero clients. It can also be used to meet security and regulatory compliance requirements, which mandate two-factor user authentication for accessing workstations and applications.
The OMNIKEY 5022 is interoperable with a number of smart card technologies, tags, and NFC-enabled smart devices. By supporting numerous credentials based on common ISO14443 A/B, ISO 15693 standards, the reader is an ideal entry-level choice to support a small footprint in desktop environments.
The OMNIKEY 5022 is integrated and tested with HID Global’s ActivID ActivClient, ActivID Applets and HID Global Trusted Tag Services.
|
Contact Smart Card Interface
|
|
|
Protocols
|
T=CL, MIFARE, iCLASS
ISO 14443A/B - up to 848 kbps (depending on card)
ISO 15693 - up to 26 kbps (depending on card)
NFC Tag 1-4
|
|
Host Interface
|
|
|
USB Interface
|
USB 2.0 Full Speed Device (12 MBps)
USB 3.0 extended operability, tested with hubs/controllers
|
|
Connector / Cable
|
USB Type A connector; 59.1" (150 cm) cable
|
|
Operating Systems
|
Windows 10/8.1/8/7/Vista/Server 2012/Server 2008R2 Windows CE (6/7) depending on hardware
Linux Debian 6.0+ / Ubuntu 11.04+/ Fedora 15+; Open SUSE 11.4+ Mac OS X; Android 4.0
|
|
Driver
|
CCID native driver from operating system (Windows/Linux/Mac)
|
|
Supported APIs
|
PC/SC - API
|
|
Human Interface
|
|
|
Status Indicator
|
White LED
|
|
Housing
|
|
|
Housing
|
Poly Carbonate
Body Light Grey / Cover in different colors available
Customer-specific logo or colour on request
|
|
Dimensions
|
2.32"" x 2.32" x 0.44" (59 x 59 x 11,4 mm)
|
|
Weight
|
70 g (2.5 oz)
|
|
Operating Conditions
|
|
|
Operating Temperature
|
32-158 F (0-70°C)
|
|
Operating Humidity
|
10-95% rH
|
|
Storage Temperature
|
-4 - 176 F (-40 - 80°C)
|
|
Meantime Between Failure (MTBF)
|
500.000 hours
|
|
Compliance Regulatory
|
|
|
Compliance / Certification
|
USB 2.0
|
|
Regional certifications
|
CE, FCC, UL, KCC, RCM
|
|
Environmental
|
WEEE, RoHS2, Reach
|
|
Ordering Information
|
|
|
Warranty
|
Two-year manufacturer's warranty
|
|
Optional
|
Mounting accessories kit
Card Holder for card presence operation
Multiple colour options available
|
