| WIRELESS |
|
| Standards |
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds |
AX3000
5 GHz: 2402 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range |
3 Bedroom Houses
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage |
| WiFi Capacity |
High
Dual-Band
Allocate devices to different bands for optimal performance
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
4 Streams
Connect your devices to more bandwidth |
| Working Modes |
Router Mode
AP Mode |
| HARDWARE |
|
| Ethernet Ports |
1× Gigabit WAN Port
1× Gigabit LAN Port |
| Buttons |
WPS Button
Reset Button |
| SECURITY |
|
| WiFi Encryption |
WPA/WPA2
WPA3
WPA/WPA2-PSK |
| Network Security |
HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner |
| Guest Network |
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network |
| VPN Server |
PPTP ServerN
OpenVPN ServerN |
| SOFTWARE |
|
| Protocols |
IPv4
IPv6 |
| Service Kits |
HomeShield
Learn More> |
| EasyMesh |
Mesh networking creates smooth, fast, stable roaming. Archer Air R5 can build an EasyMesh network with devices that use EasyMesh technology. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi.
Learn More about EasyMesh> |
| Parental Controls |
HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports |
| WAN Types |
Dynamic IP
Static IP
PPPoE
PPPoE + Dynamic IP
PPPoE + Static IP
L2TP + Dynamic IP
L2TP + Static IP
PPTP + Dynamic IP
PPTP + Static IP |
| Quality of Service |
QoS by Device |
| Cloud Service |
FOTA Firmware Upgrade
TP-Link ID
DDNS |
| NAT Forwarding |
Port Fowarding
Port Triggering
DMZ
UPnP |
| IPTV |
Profile
Bridge
Custom
Allowed range of VLAN ID |
| DHCP |
DHCP Server
Address Reservation
DHCP Client List |
| DDNS |
TP-Link
NO-IP
DynDNS |
| Management |
Tether App
Webpage
Check Web Emulator> |
| OTHER |
|
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access) |
| Certifications |
FCC, CE, RoHS |
| Environment |
Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40~60°C
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% |
| TEST DATA |
|
| WiFi Transmission Power |
CE:
<20dBm(2.4GHz)
<23dBm(5.15GHz~5.35GHz)
<30dBm(5.47GHz~5.725GHz)
FCC:
<30dBm(2.4GHz & 5.15GHz~5.825GHz) |
| WiFi Reception Sensitivity |
5GHz-band1:
11a 6Mbps:-97dBm
11a 54Mbps:-78dBm
11ac HT20 MCS8:-74dBm
11ac HT40 MCS9:-69dBm
11ac HT80 MCS9:-65dBm
11ax HE20 MCS0: -97dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -94dBm
11ax HE40 MCS11: -63dBm
11ax HE80 MCS0: -91dBm
11ax HE80 MCS11: -60dBm
5GHz-band2:
11a 6Mbps:-97dBm
11a 54Mbps:-78dBm
11ac HT20 MCS8:-74dBm
11ac HT40 MCS9:-69dBm
11ac HT80 MCS9:-65dBm
11ax HE20 MCS0: -97dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -94dBm
11ax HE40 MCS11: -63dBm
11ax HE80 MCS0: -91dBm
11ax HE80 MCS11: -60dBm
11ax HE160 MCS0: -88dBm
11ax HE160 MCS11: -58dBm
5GHz-band3:
11a 6Mbps:-97dBm
11a 54Mbps:-78dBm
11ac HT20 MCS8:-74dBm
11ac HT40 MCS9:-69dBm
11ac HT80 MCS9:-65dBm
11ax HE20 MCS0: -97dBm
11ax HE20 MCS11: -66dBm
11ax HE40 MCS0: -94dBm
11ax HE40 MCS11: -63dBm
11ax HE80 MCS0: -91dBm
11ax HE80 MCS11: -60dBm
11ax HE160 MCS0: -88dBm
11ax HE160 MCS11: -58dBm
2.4GHz:
11g 6Mbps:-96dBm
11g 54Mbps:-78dBm
11n HT20 MCS7:-76dBm
11n HT40 MCS7:-72dBm
11ax HE20 MCS0: -95dBm
11ax HE20 MCS11: -65dBm
11ax HE40 MCS0: -93dBm
11ax HE40 MCS11: -62dBm |
| PHYSICAL |
|
| Dimensions (W×D×H) |
8.3 × 5.5 × 0.4 in
(210 × 140 × 10.8 mm) |
| Package Contents |

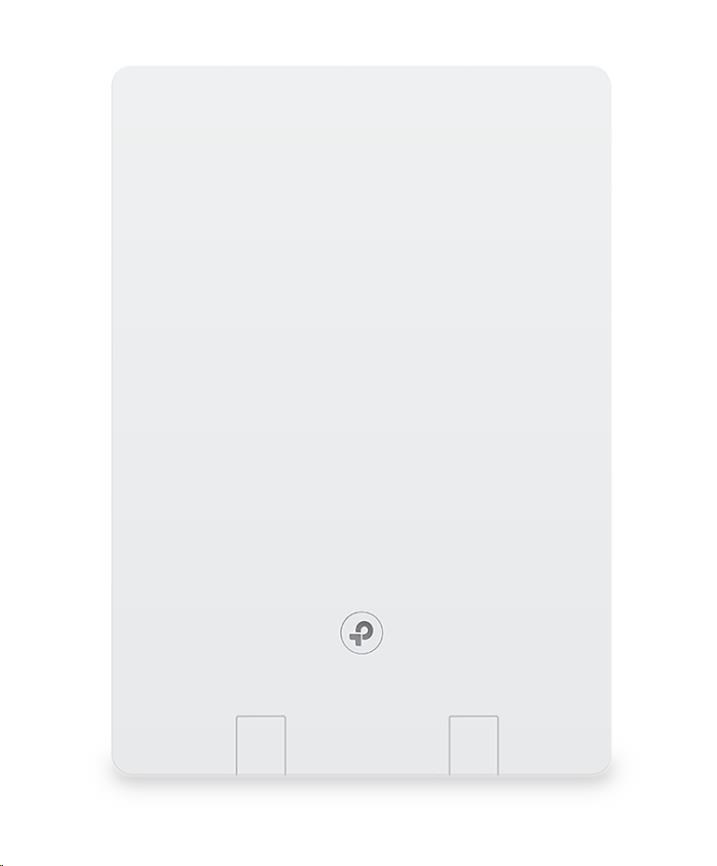

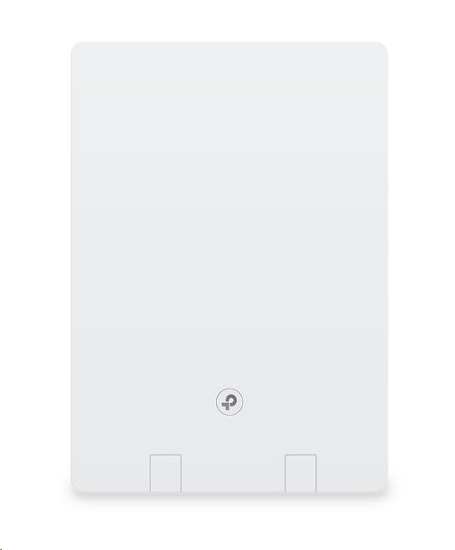

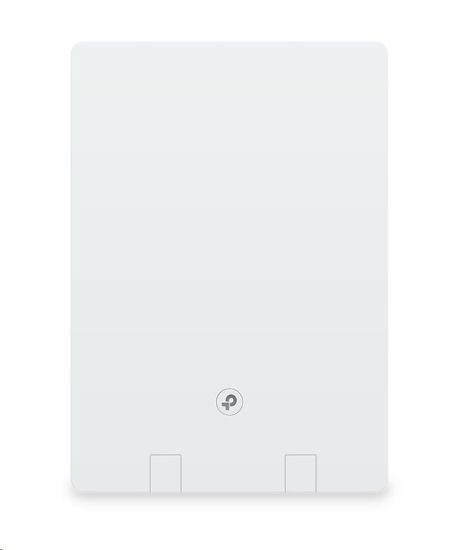

Wireless Router Archer Air R5
Quick Installation Guide
Power Adapter
Plastic Bracket
Gigabit Network Cable
Installation Accessories |
