| WIRELESS |
|
| Standards |
Wi-Fi 6
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds |
AX3000
• 5 GHz: 2402 Mbps (802.11ax, HE160)
• 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range |
3 Bedroom Houses
• 4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
• Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
• High-Power FEM
Improves transmission power to strengthen signal coverage |
| WiFi Capacity |
High
• Dual-Band
Allocate devices to different bands for optimal performance
• OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
• Airtime Fairness
Improves network efficiency by limiting excessive occupation
• DFS
Access an extra band to reduce congestion
• 4 Streams
Connect your devices to more bandwidth |
| Working Modes |
• Router Mode
• Access Point Mode |
| HARDWARE |
|
| Ethernet Ports |
• 1× 2.5 Gigabit WAN/LAN Port
• 1× Gigabit WAN/LAN Port
• 3× Gigabit LAN Ports |
| USB Support |
1× USB 3.0 Port
Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32
Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server |
| Buttons |
Wi-Fi/WPS Button
Power On/Off Button
Reset Button |
| Power |
• 12 V/ 2 A (US Version)
• 12 V/ 1.5 A (EU Version) |
| SECURITY |
|
| WiFi Encryption |
• WPA3*
• WPA2
• WPA
• WPA/WPA2-Enterprise (802.1x) |
| Network Security |
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner |
| Guest Network |
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network |
| VPN Server |
• OpenVPN
• PPTP
• L2TP |
| VPN Client |
• OpenVPN
• PPTP
• L2TP |
| SOFTWARE |
|
| Protocols |
• IPv4
• IPv6 |
| Service Kits |
HomeShield
Learn More> |
| OneMesh™ |
OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products> |
| Parental Controls |
HomeShield Parental Controls
• Custom Profiles
• Professional Content Filter Library
• Family Time
• Bedtime
• Off Time
• Time Rewards
• Family Online Time Ranking
• Pause the Internet
• Weekly and Monthly Reports |
| WAN Types |
• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP |
| Quality of Service |
QoS by Device |
| Cloud Service |
• Auto Firmware Upgrade
• OTA Firmware Upgrade
• TP-Link ID
• DDNS |
| NAT Forwarding |
• Port Forwarding
• Port Triggering
• DMZ
• UPnP |
| IPTV |
• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN |
| DHCP |
• Address Reservation
• DHCP Client List
• Server |
| DDNS |
• TP-Link
• NO-IP
• DynDNS |
| Management |
• Tether App
• Webpage
Check Web Emulator> |
| OTHER |
|
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access) |
| Certifications |
FCC, CE, RoHS |
| Environment |
Operating Temperature: 0°C~40°C (32°F ~104°F)
Operating Humidity: 10%~90% non-condensing |
| TEST DATA |
|
| WiFi Transmission Power |
• CE:
<20dBm(2.4GHz)
• FCC:
<30dBm(5.15GHz~5.25GHz&5.725GHz~5.850GHz) |
| WiFi Reception Sensitivity |
• 2.4 GHz:
11ac VHT20 MCS0:-97dBm, 11ac VHT20 MCS11: -74dBm,
11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -70dBm,
11ax HE20 MCS0: -96dBm, 11ax HE20 MCS11: -66dBm,
11ax HE40 MCS0: -93dBm, 11ac HE40 MCS11: -63dBm
• 5 GHz:
11ac VHT20 MCS0: -97dBm, 11ac VHT20 MCS11: -74dBm,
11ac VHT40 MCS0: -93dBm, 11ac VHT40 MCS11: -69dBm,
11ac VHT80 MCS0: -90dBm, 11ac VHT80 MCS11: -65dBm,
11ax HE20 MCS0: -97dBm, 11ax HE20 MCS11: -66dBm,
11ax HE40 MCS0: -94dBm, 11ax HE40 MCS11: -63dBm,
11ax HE80 MCS0: -90dBm, 11ax HE80 MCS11: -61dBm,
11ax HE160 MCS0: -87dBm, 11ax HE160 MCS11: -58dBm |
| PHYSICAL |
|
| Dimensions (W×D×H) |
10.2 × 5.3 × 1.5 in
(261.1 × 134.5 × 41.0 mm) |
| Package Contents |

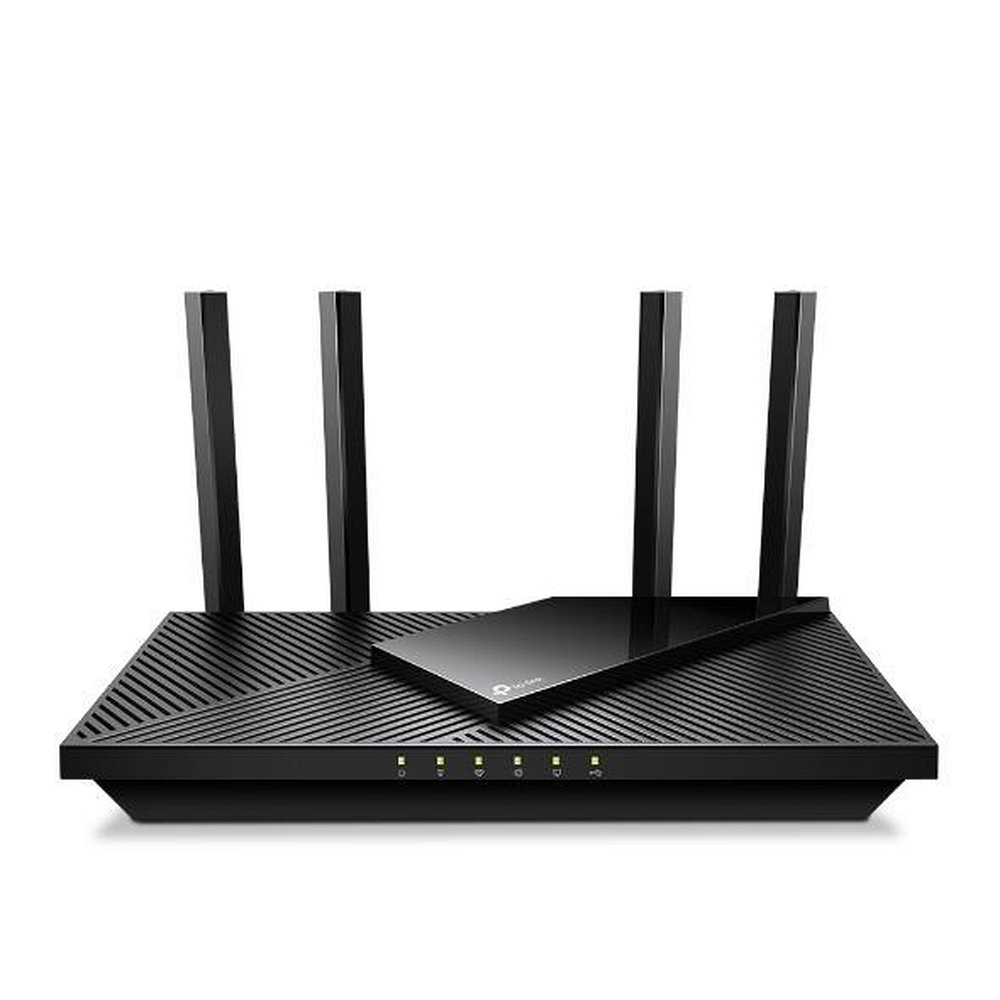

• Wi-Fi Router Archer AX55 Pro
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide |
