| WIRELESS |
|
| Standards |
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds |
AX6600
5 GHz: 4804 Mbps (802.11ax, HE160)
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range |
4 Bedroom Houses
8× Detachable High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage
4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission |
| WiFi Capacity |
Very High
Tri-Band
Allocate devices to different bands for optimal performance
4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
8 Streams
Connect your devices to more bandwidth |
| Working Modes |
Router Mode
Access Point Mode |
| HARDWARE |
|
| Processor |
1.5 GHz Quad-Core CPU |
| Ethernet Ports |
1× 2.5 Gbps WAN/LAN Port
1× Gigabit WAN/LAN Port
3× Gigabit LAN Ports |
| USB Support |
1× USB 3.0 Port
1× USB 2.0 Port
Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32
Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server |
| Buttons |
Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button |
| Power |
12 V = 5 A |
| SECURITY |
|
| WiFi Encryption |
WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x) |
| Network Security |
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
HomeCare™ Antivirus
Malicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log |
| Guest Network |
2× 5 GHz Guest Network
1× 2.4 GHz Guest Network |
| VPN Server |
OpenVPN
PPTP |
| SOFTWARE |
|
| Protocols |
IPv4
IPv6 |
| Game Center |
Game Accelerator
Detects and optimizes gaming streams to keep latency as low as possible
Game Statistics
Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detail
Game Protector
Keep your accounts and system safe with HomeCare™ antivirus protection |
| Service Kits |
HomeCare™
Learn More> |
| OneMesh™ |
OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Learn More>
All OneMesh Products> |
| Parental Controls |
HomeCare™ Parental Controls
Custom Profiles
Content Filtering
App Block
URL Filtering
Time Limit
Time Schedule (Bedtime)
Log Insight |
| WAN Types |
Dynamic IP
Static IP
PPPoE
PPTP
L2TP |
| Quality of Service |
Game Accelerator QoS.
QoS by Device
HomeCare™ QoS
QoS by Application |
| Cloud Service |
Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS |
| NAT Forwarding |
Port Forwarding
Port Triggering
DMZ
UPnP |
| IPTV |
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN |
| DHCP |
Address Reservation
DHCP Client List
Server |
| DDNS |
TP-Link
NO-IP
DynDNS |
| Management |
Tether App
Webpage
Check Web Emulator> |
| PHYSICAL |
|
| Dimensions (W×D×H) |
8.3 × 8.3 × 2.0 in
(212 × 212 × 51.8 mm) |
| Package Contents |

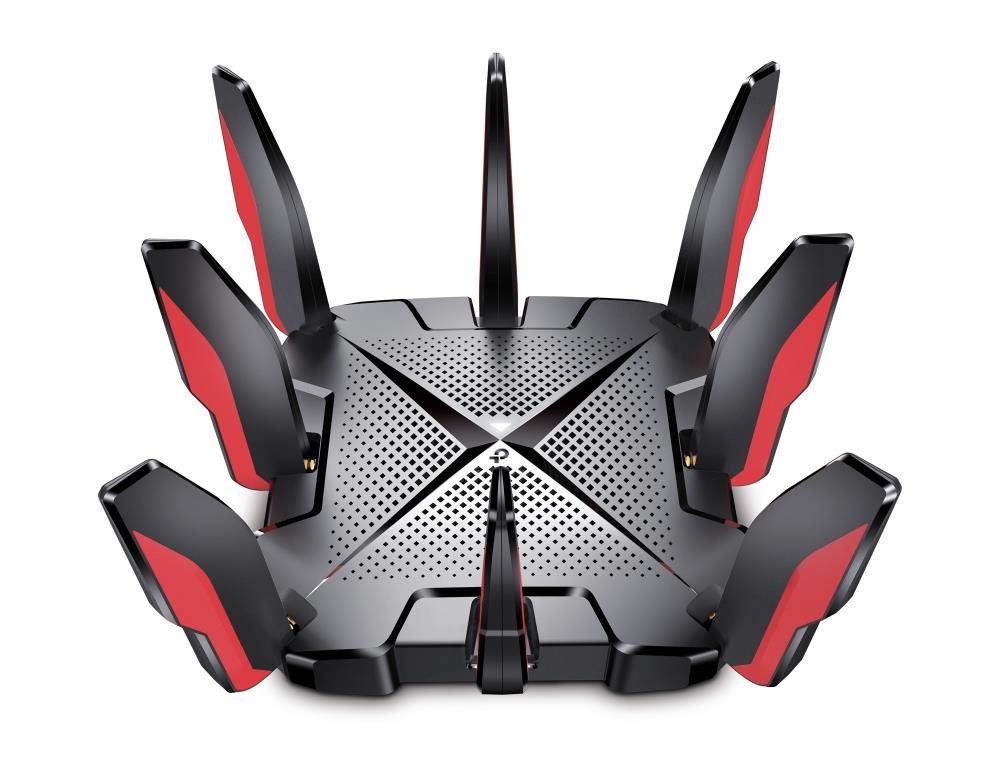

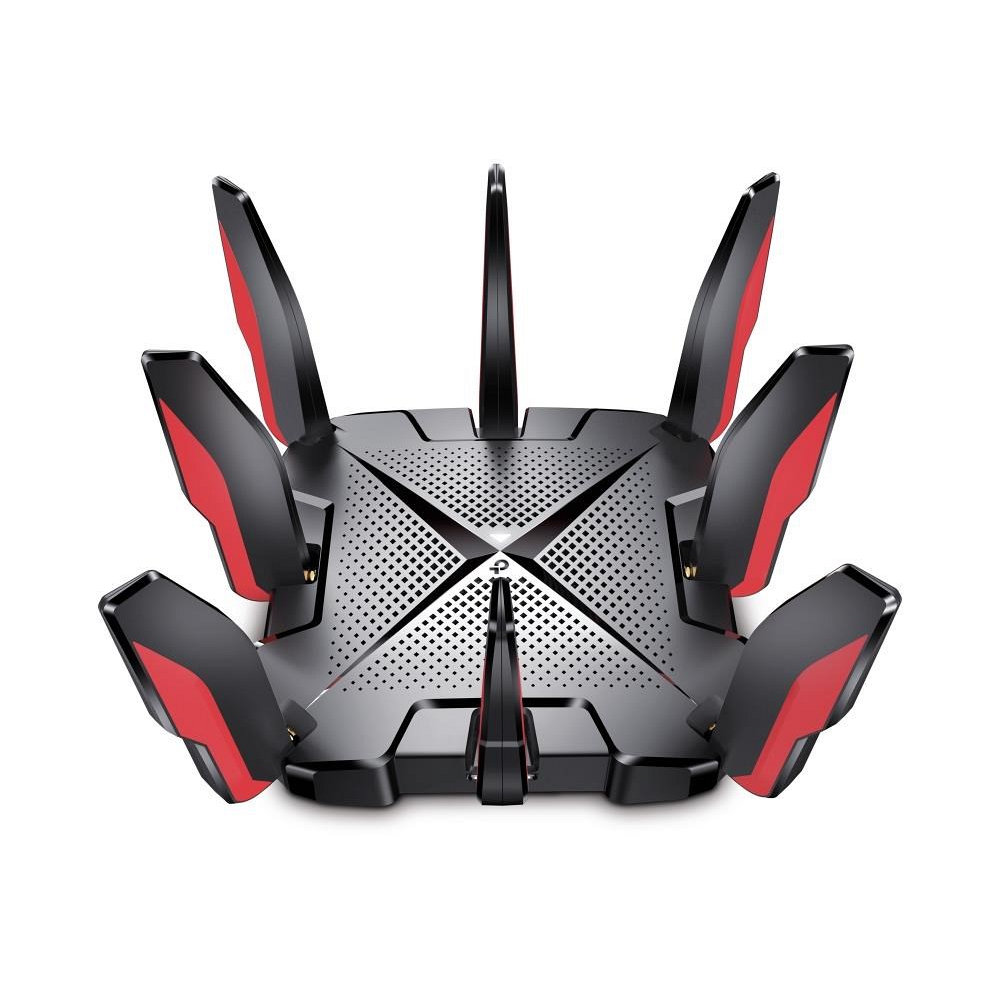

Wi-Fi Router Archer GX90
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
| OTHER |
|
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access) |
| Certifications |
FCC, CE, RoHS |
| Environment |
Operating Temperature: 0°C~40°C (32°F ~104°F)
Storage Temperature: -40°C~70°C (-40°F ~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
| TEST DATA |
|
| WiFi Transmission Power |
CE:
<20dBm(2.4GHz)
<23dBm(5.15GHz~5.35GHz)
<30dBm(5.47GHz~5.725GHz)
FCC:
<30dBm(2.4GHz & 5.15GHz~5.25GHz & 5.725GHz~5.825GHz)
<24dBm(5.25GHz-5.35GHz & 5.47GHz-5.725 GHz) |
| WiFi Reception Sensitivity |
5 GHz-1:
11a 6Mbps:-93dBm, 11a 54Mbps:-76dBm
11ac VHT20 MCS0:-92dBm, 11ac VHT20 MCS8:-69dBm
11ac VHT40 MCS0:-90dBm, 11ac VHT40 MCS9:-65dBm
11ac VHT80 MCS0:-87dBm, 11ac VHT80 MCS9:-62dBm
11ax HE20 MCS0:-93dBm,11ax HE20 MCS11:-62dBm
11ax HE40 MCS0:-90dBm,11ax HE40 MCS11:-59dBm
11ax HE80 MCS0:-87dBm,11ax HE80 MCS11:-56dBm
5 GHz-2 (Gaming Band):
11a 6Mbps:-96dBm, 11a 54Mbps:-77dBm
11ac VHT20 MCS0:-95dBm, 11ac VHT20 MCS11:-64dBm
11ac VHT40 MCS0:-93dBm, 11ac VHT40 MCS11:-62dBm
11ac VHT80 MCS0:-90dBm, 11ac VHT80 MCS11:-59dBm
11ac VHT160 MCS0:-84dBm, 11ac VHT160 MCS11:-53dBm
11ax HE20 MCS0:-93dBm,11ax HE20 MCS11:-62dBm
11ax HE40 MCS0:-90dBm,11ax HE40 MCS11:-59dBm
11ax HE80 MCS0:-87dBm,11ax HE80 MCS11:-57dBm
11ax HE160 MCS0:-84dBm,11ax HE160 MCS11:-54dBm
2.4 GHz:
11g 6Mbps:-96dBm, 11g 54Mbps:-77dBm
11n HT20 MCS0:-95dBm, 11n HT20 MCS7:-76dBm
11n HT40 MCS0:-93dBm, 11n HT40 MCS7:-73dBm
11ac VHT20 MCS0:-95dBm, 11ac VHT20 MCS8:-73dBm
11ac VHT40 MCS0:-92dBm, 11ac VHT40 MCS9:-68dBm
11ax HE20 MCS0:-95dBm,11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-95dBm,11ax HE40 MCS11:-62dBm |
