| HARDWARE FEATURES |
| Interface | 1 × 10/100/1000 Mbps LAN/WAN Port
2 × 10/100/1000 Mbps LAN Ports
1 × Nano SIM Card Slot
2 × 5G/4G External Antenna Ports |
| Button | WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button |
| External Power Supply | Power Adapter: Input Power 100-240v~50/60 Hz 0.6A
Output parameter 12VDC 2A |
| Dimensions ( W x D x H ) | 3.9 × 3.9 × 7.5 in ( 99 × 99 × 190 mm) |
| Antenna | 8 × 5G/LTE Internal Antennas
2 × Wi-Fi Internal Antennas |
| WIRELESS FEATURES |
| Wireless Standards | IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 574 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz |
| Reception Sensitivity | 5GHz:
11a 54M:-80 dBm
11ax HE20:-68 dBm
11ax HE40:-65 dBm
11ax HE80:-62 dBm
11ac VHT20:-76 dBm
11ac VHT40:-72 dBm
11ac VHT80:-68 dBm
11n HT20:-79 dBm
11n HT40:-75 dBm
2.4GHz
11g 54M:-78 dBm
11ax HE20:-65 dBm
11ax HE40:-62 dBm
11ac VHT20:-73 dBm
11ac VHT40:-68 dBm
11n HT20:-75 dBm
11n HT40:-72 dBm |
| Transmit Power | <23dBm (5.15GHz~5.35GHz)
<30dBm (5.47GHz~5.71GHz)
<20dBm (2.4GHz) |
| Wireless Functions | Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics |
| WAN Failover | Yes |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Network Type | 5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz)
FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500 MHz)
TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz)
DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
| SOFTWARE FEATURES |
| Quality of Service | Prioritizes network traffic by device or application |
| Security | DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management | TP-Link Cloud, Local Management, Remote Management |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | ALG, Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | TP-Link, DynDns, NO-IP |
| VPN | PPTP VPN, IPSec VPN , OpenVPN |
| Access Control | Parental Control, Local Management Control |
| Firewall Security | DoS, SPI Firewall, IP Address Filter/Domain Filter,
IP and MAC Address Binding |
| Protocols | IPv4, IPv6 |
| Guest Network | 2.4 GHz Guest Network x 1
5 GHz Guest Network x 1 |
| OTHERS |
| Certification | CE, RoHS |

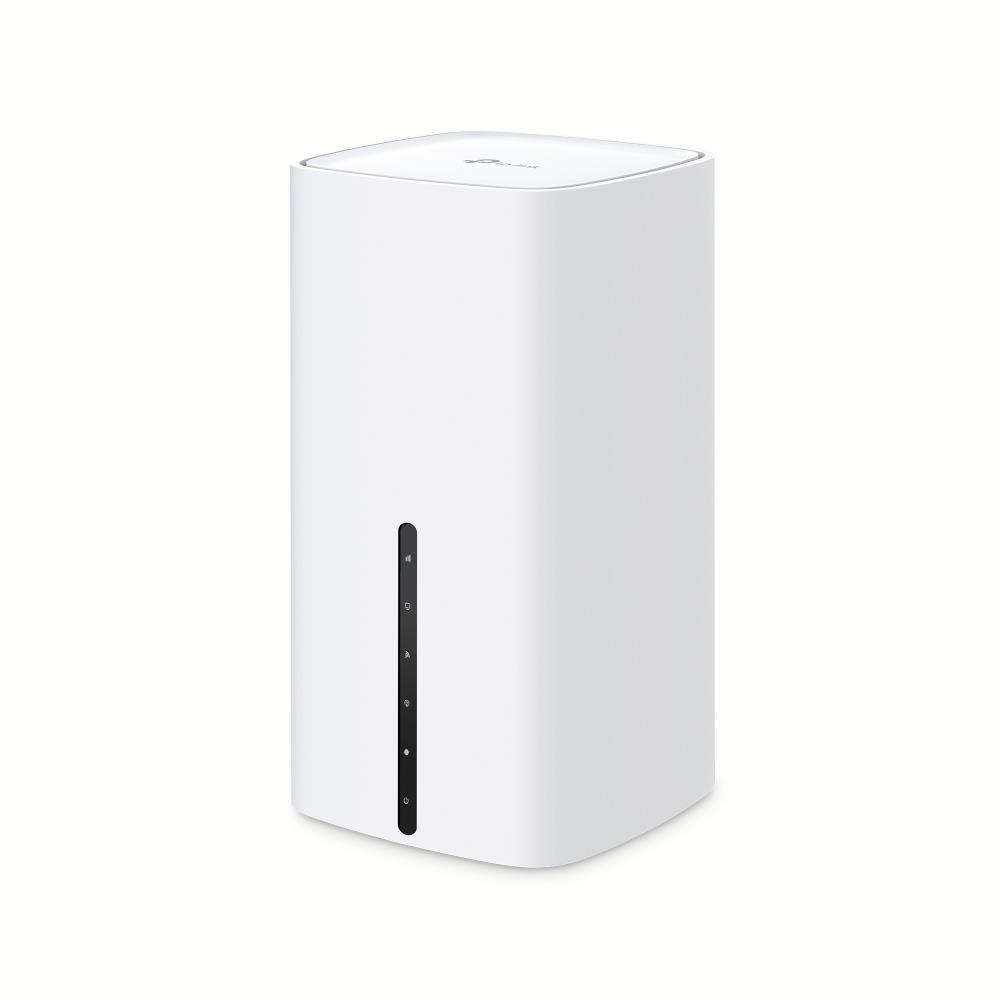

| Package Contents | 5G AX1800 Wireless Dual-Band Gigabit Router Archer NX200
1.5m Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Nano SIM Card |
| Environment | Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
