| HARDWARE FEATURES |
|
| Interface |
1× Fast Ethernet (RJ-45) Port (Support 48V Passive PoE/802.3af PoE) |
| Button |
Reset |
| Power Supply |
48V Passive PoE (+4,5pins; -7,8pins);
802.3af PoE |
| Power Consumption |
4.11 W |
| Dimensions ( W x D x H ) |
8.5 × 1.8 × 1.5 in (214.9 × 46 × 37.7 mm) |
| Antenna Type |
2× 3 dBi External Omni waterproof |
| Weatherproof Enclosure |
IP65 |
| Mounting |
Pole / Wall Mounting (Kits included) |
| WIRELESS FEATURES |
|
| Wireless Client Capacity |
100+** |
| Wireless Standards |
IEEE 802.11n/g/b |
| Frequency |
2.4 GHz |
| Signal Rate |
• 11n: Up to 300 Mbps (dynamic)
• 11g: Up to 54 Mbps (dynamic)
• 11b: Up to 11 Mbps (dynamic) |
| Transmit Power |
• CE: ?20 dBm (EIRP)
• FCC: ?22 dBm |
| Wireless Functions |
• Multiple SSIDs(Up to 8 SSIDs)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
| MANAGEMENT |
|
| Omada App |
Yes |
| Centralized Management |
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller |
| Cloud Access |
Yes. Requiring the use of OC300, OC200, or Omada Software Controller. |
| Email Alerts |
Yes |
| LED ON/OFF Control |
Yes |
| Management MAC Access Control |
Yes |
| SNMP |
v1, v2c |
| System Logging Local/Remote Syslog |
Local/Remote Syslog |
| SSH |
Yes |
| Web-based Management |
HTTP/HTTPS |
| L3 Management |
Yes |
| Multi-site Management |
Yes |
| Management VLAN |
Yes |
| OTHERS |
|
| Certification |
CE, FCC, RoHS |
| Package Contents |

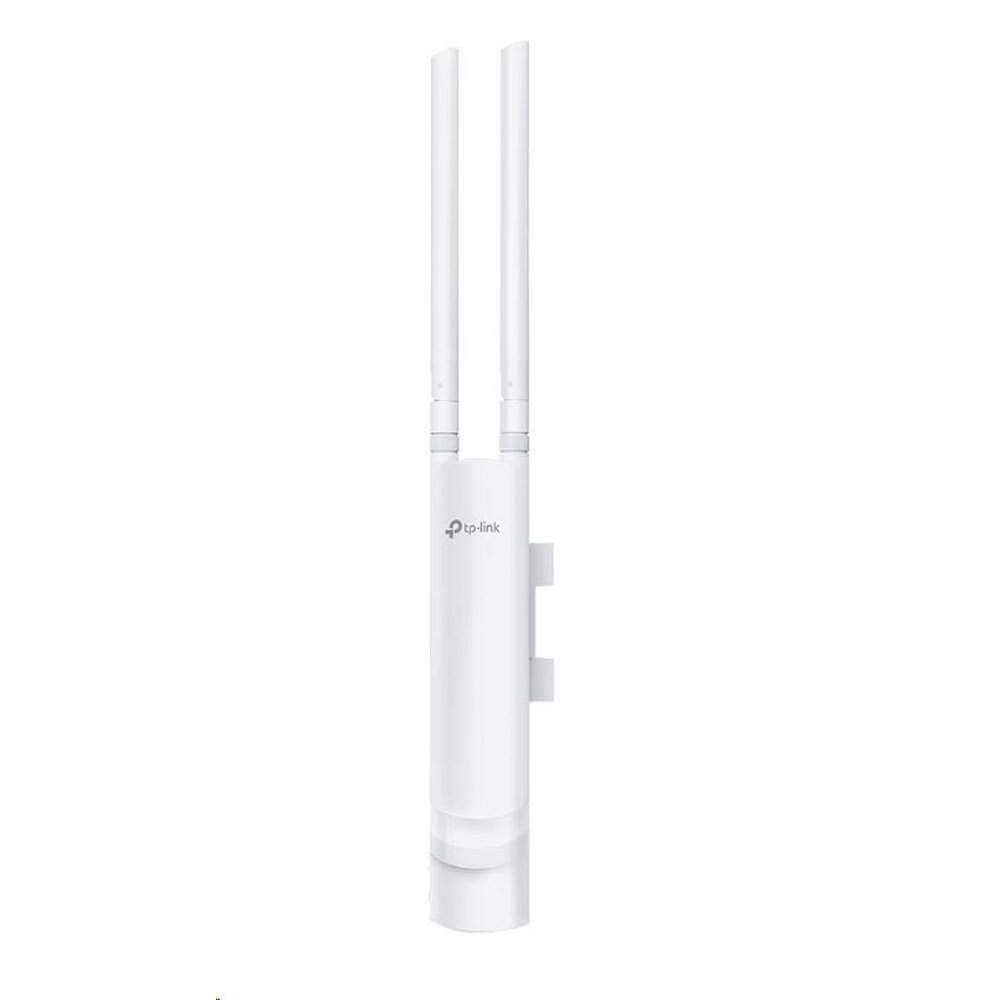

• 300Mbps Wireless N Outdoor Access Point, EAP113-Outdoor
• Mounting Kits
• Waterproof Rubber Insert
• Waterproof Antennas
• Installation Guide |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| Environment |
• Operating Temperature: -30–65 °C (-22–149 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
