| HARDWARE FEATURES | |
| Interface | Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af/A PoE
24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Power Consumption | • EU: 10.5 W
• US: 12.6 W |
| Dimensions ( W x D x H ) | 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm) |
| Antenna Type | 3 Internal Omni
• 2.4 GHz: 4 dBi
• 5 GHz: 5 dBi |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz:Up to 867 Mbps
• 2.4 GHz:Up to 450 Mbps |
| Wireless Functions | • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• Seamless Roaming*
• Omada Mesh*
• Band Steering
• Load Balance
• MU-MIMO
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication*
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support |
| Transmission Power | • CE:
?20 dBm(2.4 GHz, EIRP)
?23 dBm(5 GHz, EIRP)
• FCC:
?24 dBm(2.4 GHz)
?22 dBm(5 GHz) |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller OC300
• Omada Hardware Controller OC200
• Omada Software Controller
• Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20) |
| Cloud Access | Yes, through
• OC300
• OC200
• Omada Software Controller
• Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20) |
| OTHERS | |
| Certification | CE, FCC, RoHS |

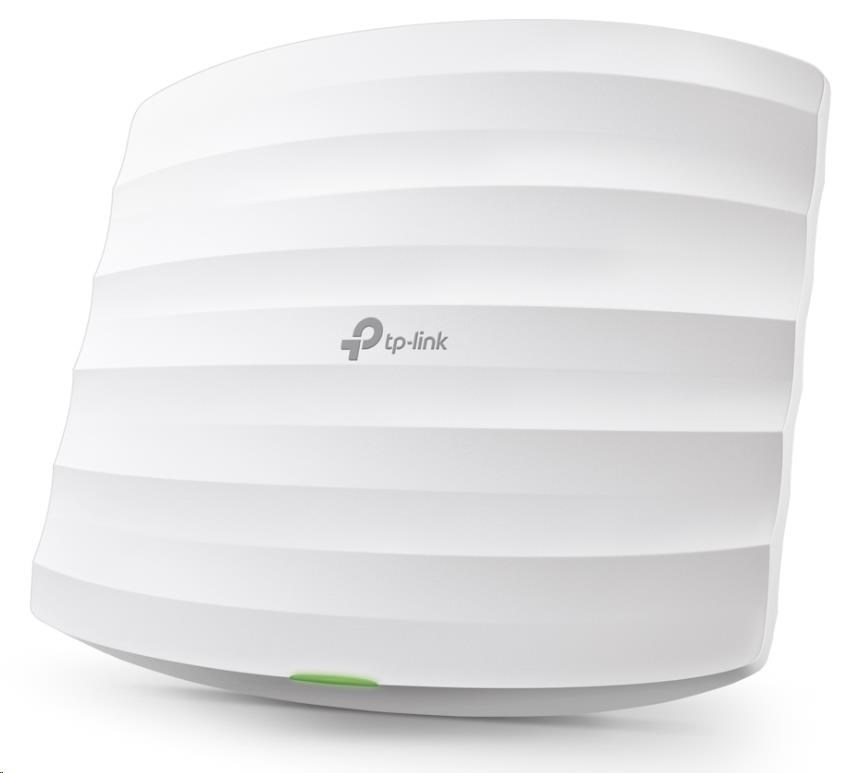

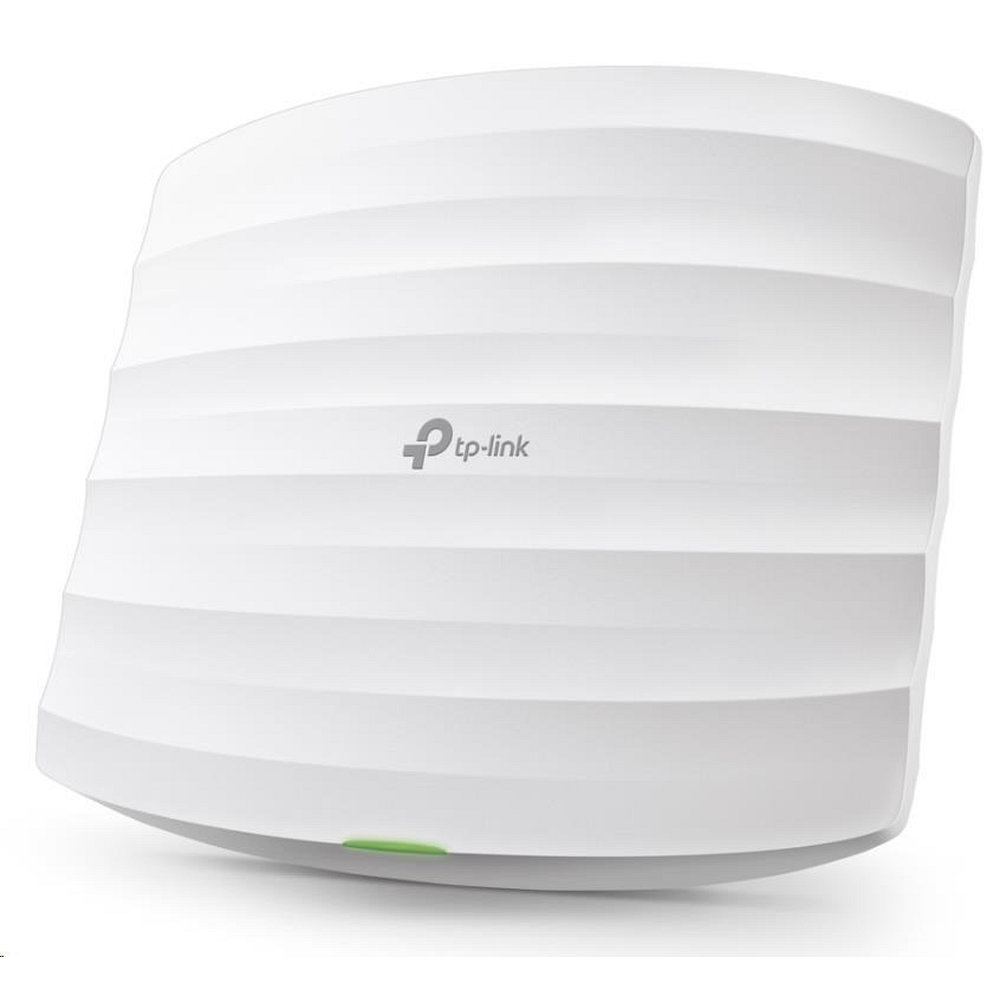

| Package Contents | • AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: 0°C–40°C (32°F–104°F)
• Storage Temperature: -40°C–70°C (-40°F–158°F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
