| HARDWARE FEATURES |
|
| Interface |
1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE) |
| Button |
Reset |
| Power Supply |
• 802.3at PoE
• 48V Passive PoE (PoE Adapter Included) |
| Power Consumption |
• EU: 12.5W (802.3at PoE or Passive PoE)
• US: 14.7W (802.3at PoE or Passive PoE) |
| Dimensions ( W x D x H ) |
• 280.4×106.5×56.8 mm (without antenna & mounting kit) |
| Antenna |
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi |
| Weatherproof Enclosure |
IP67 |
| Mounting |
Pole/Wall Mounting (Kits included) |
| WIRELESS FEATURES |
|
| Wireless Standards |
IEEE 802.11ax/ac/n/g/b/a |
| Frequency |
2.4 GHz, 5 GHz |
| Signal Rate |
• 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
• 802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to
2 VHT20/40/80)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Transmit Power |
• CE: • FCC: |
| Wireless Functions |
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• MU-MIMO
• Omada Mesh3
• Seamless Roaming3
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
• Captive Portal Authentication3
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| MANAGEMENT |
|
| Omada App |
Yes |
| Centralized Management |
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller |
| Cloud Access |
Yes, through
• Omada Cloud-Based Controller
• OC300
• OC200
• Omada Software Controller |
| Email Alerts |
Yes |
| Management MAC Access Control |
Yes |
| SNMP |
v1, v2c |
| System Logging Local/Remote Syslog |
Yes |
| SSH |
Yes |
| Web-based Management |
Yes |
| L3 Management |
Yes |
| Multi-site Management |
Yes |
| Management VLAN |
Yes |
| Zero-Touch Provisioning |
Yes. Requiring the use of Omada Cloud-Based Controller |
| OTHERS |
|
| Certification |
CE, FCC, RoHS |
| Package Contents |

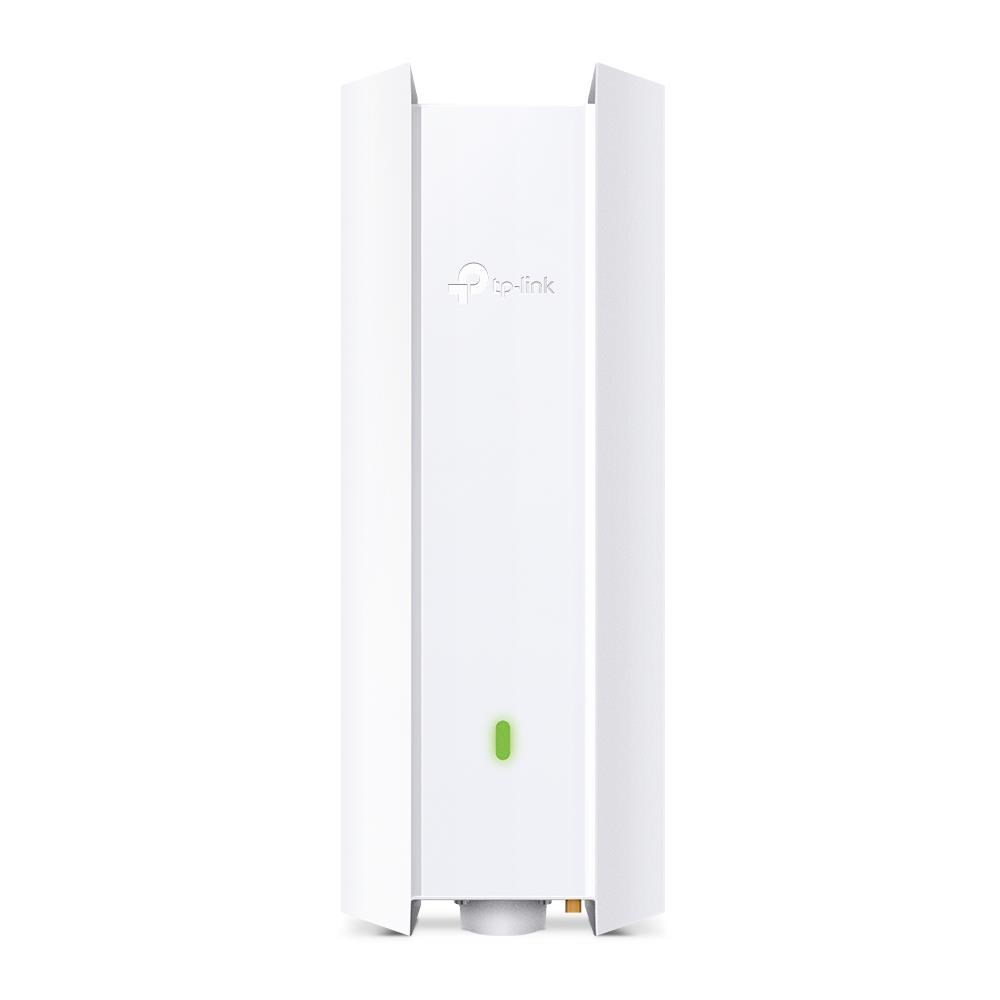

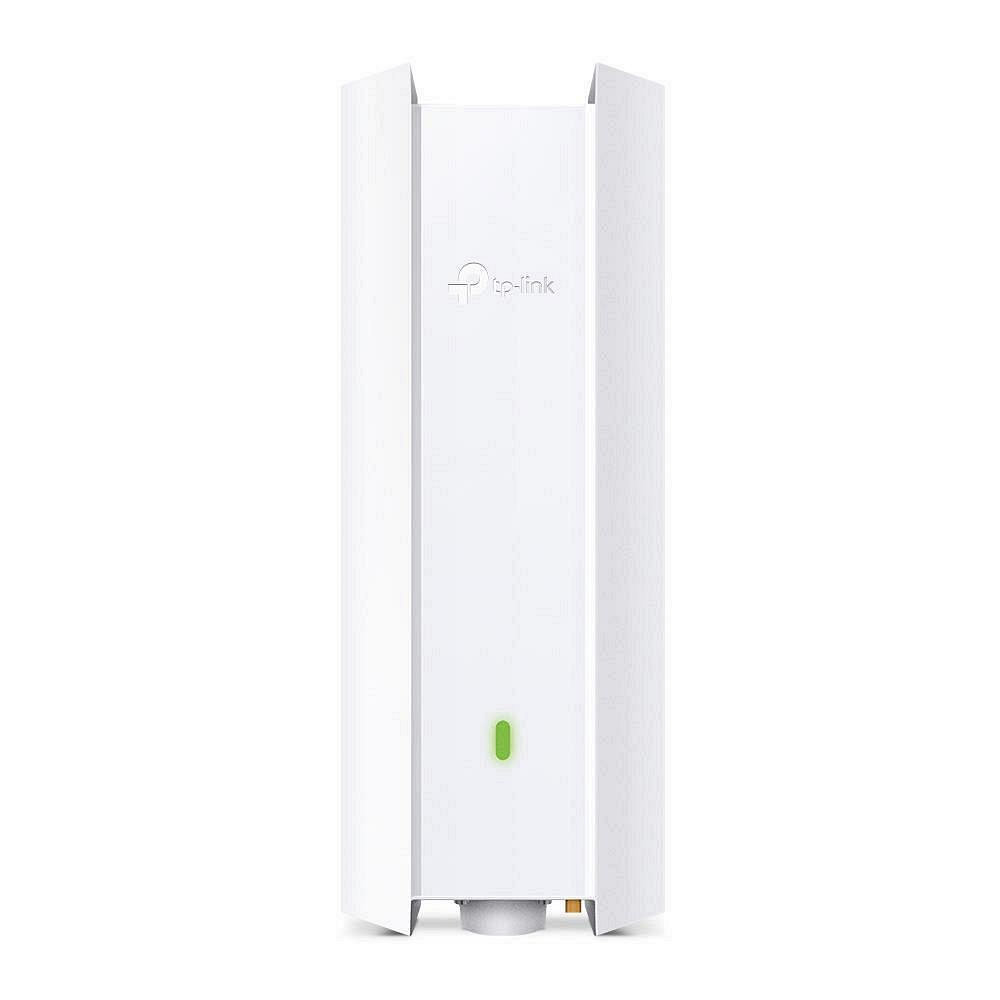

• Access Point EAP650-Outdoor
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment |
• Operating Temperature: -30–70 °C (-22–158 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
