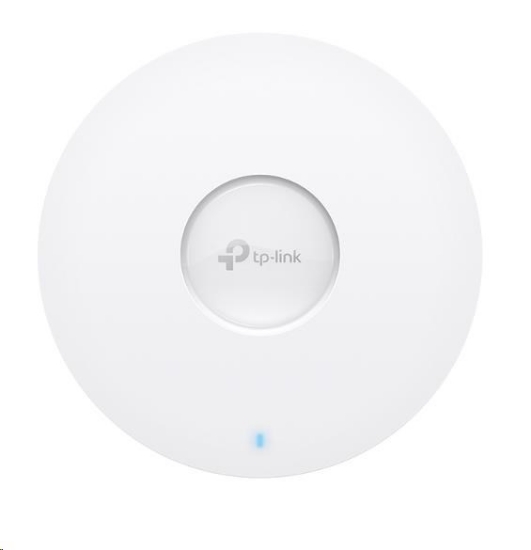

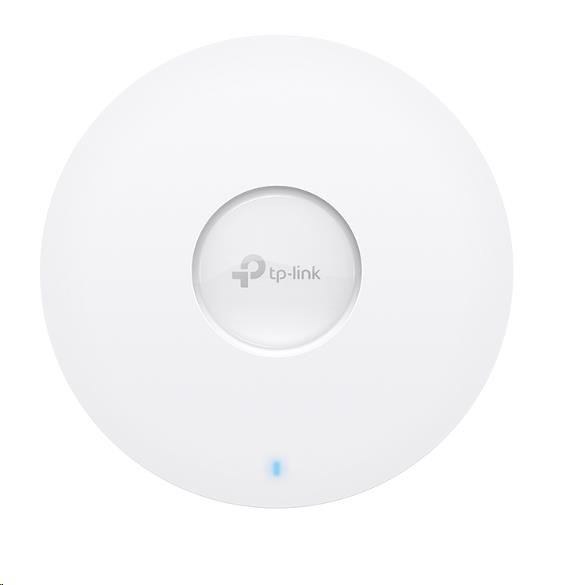

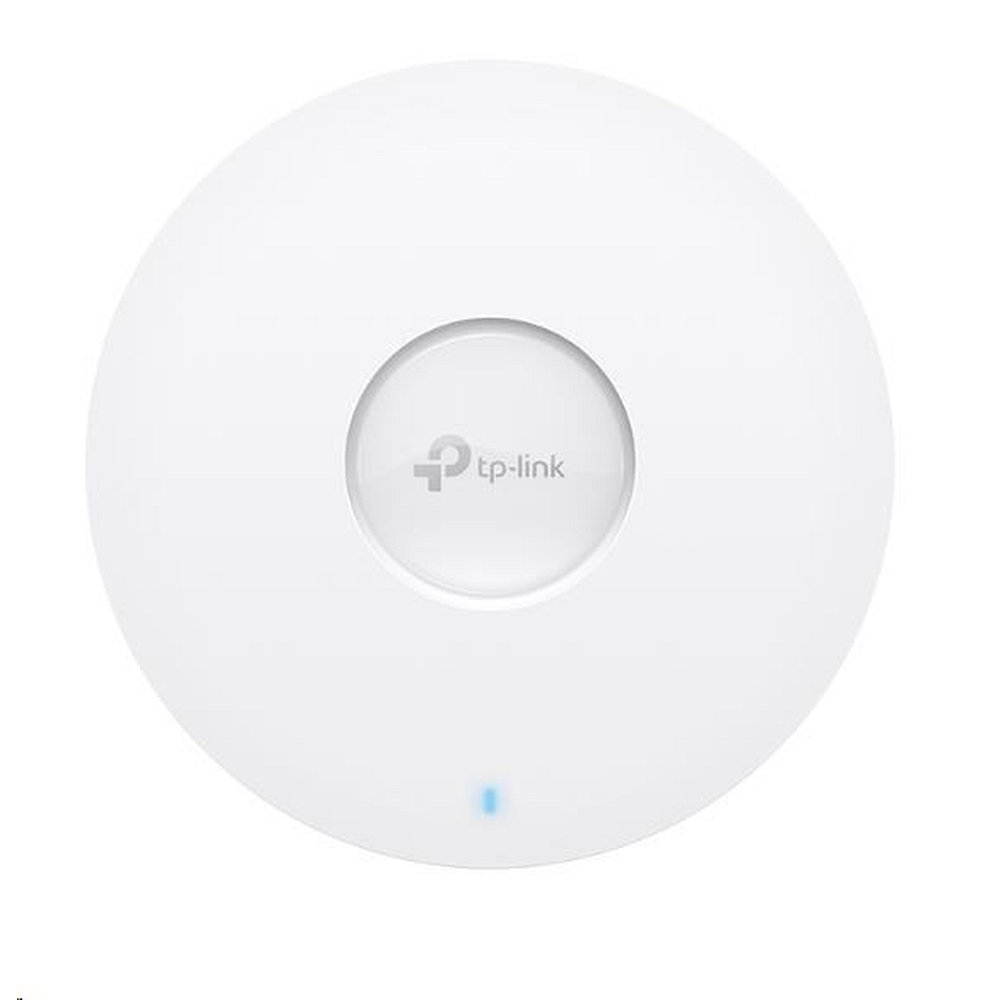

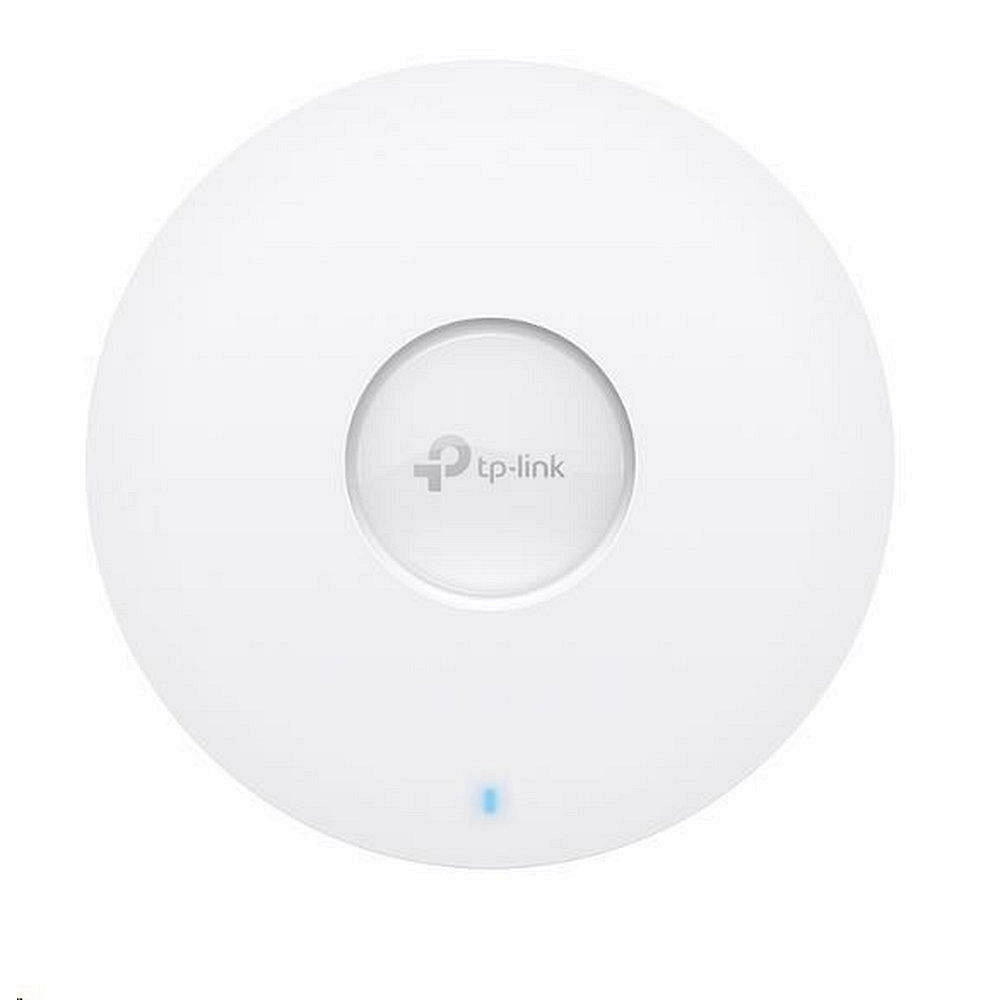

TP-Link EAP670 v2 OMADA WiFi6 AP (AX5400,2,4GHz/5GHz,1x2,5GbELAN,1xPoE-in)
Typ aktivního prvku:AP (Access Point), MU-MIMO; Frekvenční pásmo (GHz):2,4, 5, 2,4 + 5 (Dual Band); Podporované standardy:802.11ax, 802.11b/g, 802.11b/g/n, 802.11b, 802.11a, 802.11g, 802.11a/n, 802.11n, 802.11ac; Zabezpečení:WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WPA3; Typ antény:Integrovaná; Použití:Vnitřní; Typy PoE:PoE - In
Dostupnost:
na objednávku - obvykle (2 týdny).
Kód:
438948
Typové označení výrobce :
EAP670
GTIN (EAN):
4895252506181
TP-Link EAP670 v2
Přístupový bod AX5400 Wi-Fi 6 pro montáž na strop
- Bleskově rychlá WiFi 6 s rychlostí (574 Mb/s na 2,4 GHz + 4804 Mb/s na 5 GHz).
- Integrováno do Omada SDN, podporuje centralizovanou správu cloudu, ZTP a další.
- Kanál 160 MHz zdvojnásobuje data ve špičkách přenosu na jednom streamu.
- Pokročilé funkce: Podporuje bezproblémový roaming, Omada Mesh a další.
- Podporuje napájení 802.3at PoE+ i DC (adaptér je součástí balení) pro flexibilní instalaci.
Více informací o Omada Wi-Fi 6>?
Více informací o Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-wifi-ceiling-mount/eap670/v2/
Technické specifikace
| HARDWARE FEATURES |
|
| Interface |
1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) |
| Button |
Reset |
| Power Supply |
• 802.3at PoE
• 12 V / 2 A DC (Power Adapter included) |
| Power Consumption |
• EU: 20.8 W
• US: 22.3 W |
| Dimensions ( W x D x H ) |
8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna Type |
Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 4× 5 dBi |
| Mounting |
Ceiling /Wall Mounting (Kits included) |
| WIRELESS FEATURES |
|
| Wireless Client Capacity |
250+** |
| Wireless Standards |
IEEE 802.11ax/ac/n/g/b/a |
| Frequency |
2.4 GHz and 5 GHz |
| Signal Rate |
• 5 GHz: Up to 4804 Mbps
• 2.4 GHz: Up to 574 Mbps |
| Wireless Functions |
• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• HE160 (160 MHz Bandwidth)‡
• Seamless Roaming §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client |
| Wireless Security |
• Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power |
• CE:
• FCC: |
| MANAGEMENT |
|
| Omada App |
Yes |
| Centralized Management |
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller |
| Cloud Access |
Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts |
Yes |
| LED ON/OFF Control |
Yes |
| Management MAC Access Control |
Yes |
| SNMP |
v1, v2c, v3 |
| System Logging Local/Remote Syslog |
Local/Remote Syslog |
| SSH |
Yes |
| Web-based Management |
HTTP/HTTPS |
| L3 Management |
Yes |
| Multi-site Management |
Yes |
| Management VLAN |
Yes |
| Zero-Touch Provisioning |
Yes. Require the use of Omada Cloud-Based Controller. |
| OTHERS |
|
| Certification |
CE, FCC, RoHS |
| Package Contents |
• EAP670
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide |
| System Requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment |
• Operating Temperature: 0–40 °C (32–104 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
