TP-Link EAP673 OMADA WiFi6 AP (AX5400,2,4GHz/5GHz,1x2,5GbELAN,1xPoE-in)
Typ aktivního prvku:AP (Access Point), MU-MIMO; Frekvenční pásmo (GHz):2,4, 5, 2,4 + 5 (Dual Band); Podporované standardy:802.11ax, 802.11b/g, 802.11b/g/n, 802.11b, 802.11a, 802.11g, 802.11a/n, 802.11n, 802.11ac; Zabezpečení:WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WPA3; Typ antény:Integrovaná; Použití:Vnitřní; Typy PoE:PoE - In
Kód:
324278
Typové označení výrobce :
EAP673
GTIN (EAN):
4895252506488

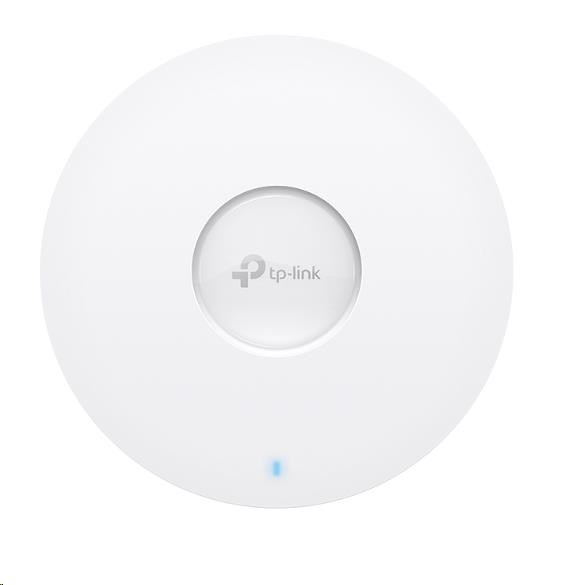

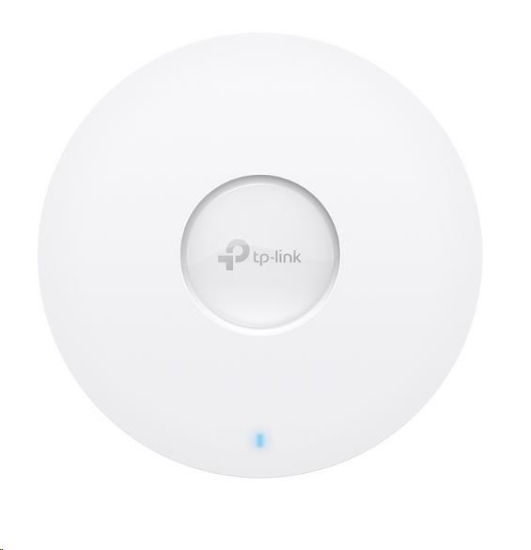

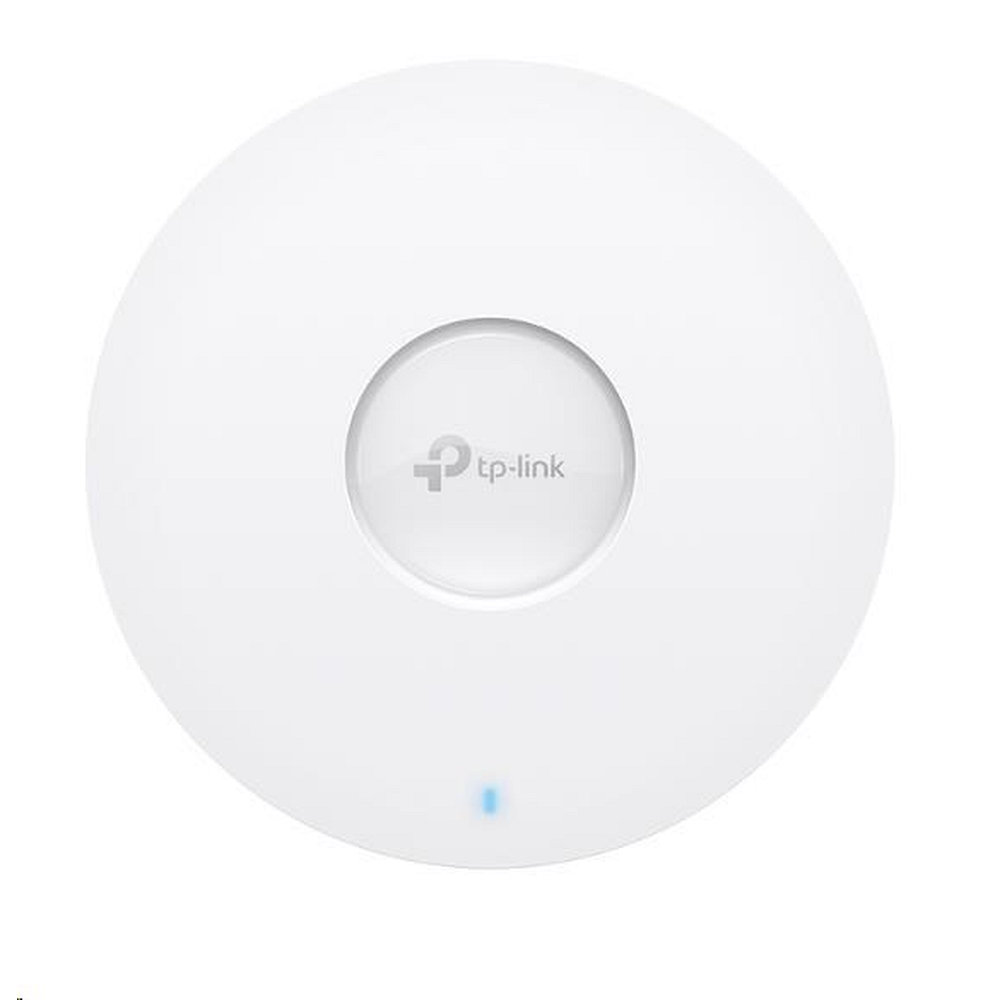

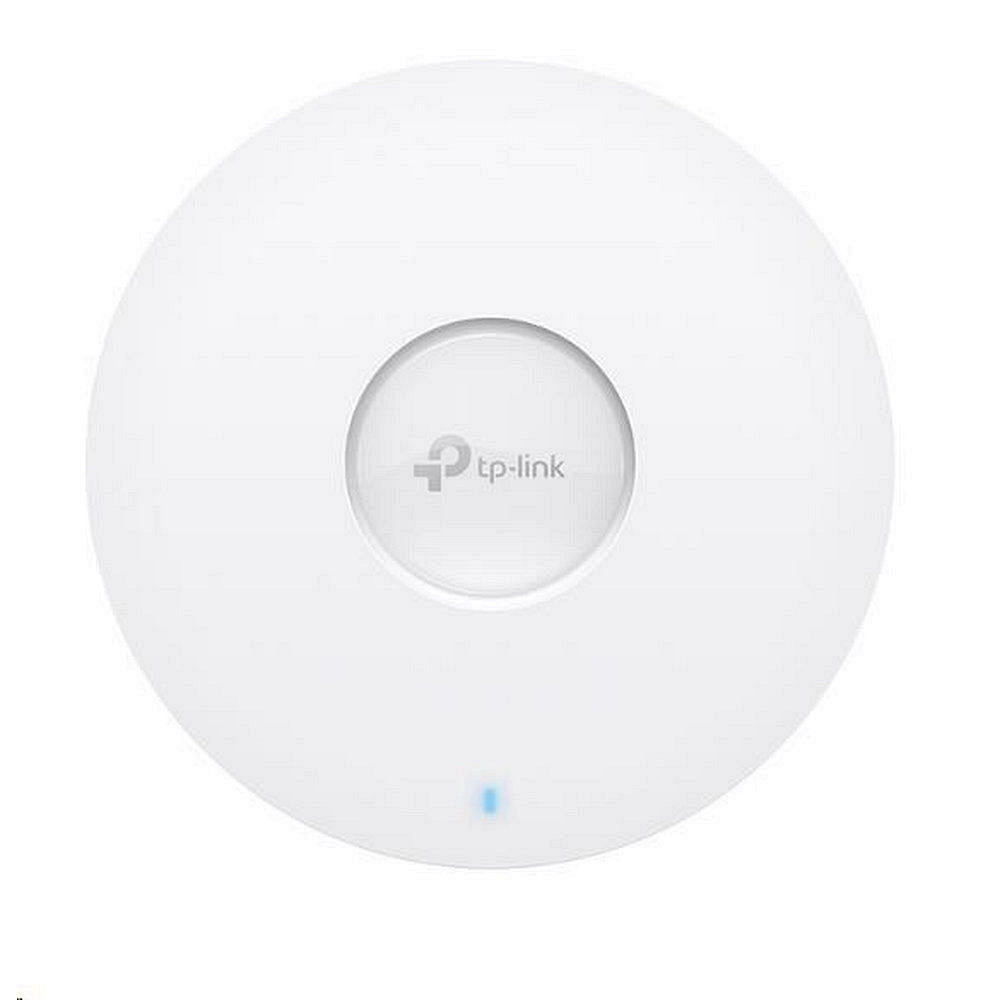

TP-Link EAP673
Přístupový bod AX5400 Wi-Fi 6 pro montáž na strop
- Extrémně rychlé rychlosti WiFi 6 (574 Mbps na 2.4 GHz + 4804 Mbps na 5 GHz).
- Integrováno do Omada SDN, podporuje centralizovanou správu cloudu, ZTP a další.
- 160 MHz kanál zdvojnásobuje přenos dat při maximální rychlosti na jednom streamu.
- Pokročilé funkce: Podporuje bezproblémový roaming, Omada Mesh a další.
- Podporuje napájení přes 802.3at PoE+ a DC (adaptér není součástí balení) pro flexibilní instalace.
Více informací o Omada Wi-Fi 6>?
Více informací o Omada Cloud SDN>?
Stránky produktu: https://www.tp-link.com/cz/business-networking/omada-wifi-ceiling-mount/eap673/
Technické specifikace
| HARDWARE FEATURES |
| Interface | 1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) |
| Button | Reset |
| Power Supply | • 802.3at PoE
• 12 V / 2 A DC (Power adapter not included) |
| Power Consumption | • EU: 20.8 W
• US: 22.3 W |
| Dimensions ( W x D x H ) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna Type | Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 4× 5 dBi |
| Bluetooth | V5.2 |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| WIRELESS FEATURES |
| Coverage | 140?(1500 ft2)*** |
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 4804 Mbps
• 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | • 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO (5G: 4x4 DL/UL MU-MIMO)
• HE160 (160 MHz Bandwidth)‡
• Seamless Roaming(802.11k/v/r) §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client |
| Wireless Security | • Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, , band1 & band2, EIRP)
<30 dBm(5 GHz, , band3, EIRP)
• FCC:
<25 dBm (2.4 GHz)
<28 dBm (5 GHz) |
| MANAGEMENT |
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| OTHERS |
| Certification | CE, FCC, RoHS |
| Package Contents | • EAP673
• Ceiling/Wall Mounting Kits
• Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: 0–40 ? (32–104 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
