| HARDWARE FEATURES |
|
| Interface |
• 2× 10/100/1000 Mbps Ethernet Ports
• 1× USB 3.0 Port |
| Power Supply |
100–240 V~50/60 Hz, 0.6 A |
| Dimensions |
11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) |
| MANAGEMENT |
|
| Omada App |
Yes |
| Centralized Management |
• Up to 500 Omada access points, JetStream switches, and SafeStream routers*
• Up to 15,000 clients
*Only some JetStream switches and Safestream gateways can be centrally managed by OC300, please refer to www.tp-link.com/business-networking/all-omada/ to find all the models supported by OC300 |
| Cloud Access |
Yes |
| L3 Management |
Yes |
| Multi-site Management |
Yes |
| Management Features |
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration |
| OTHERS |
|
| Certification |
CE, FCC, RoHS |
| Package Contents |

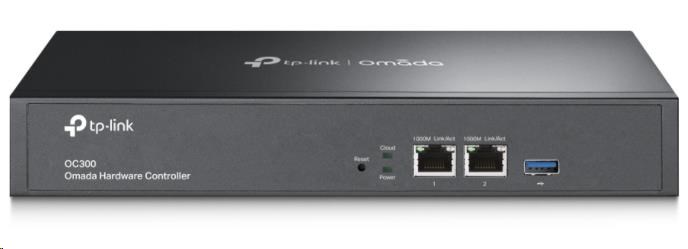

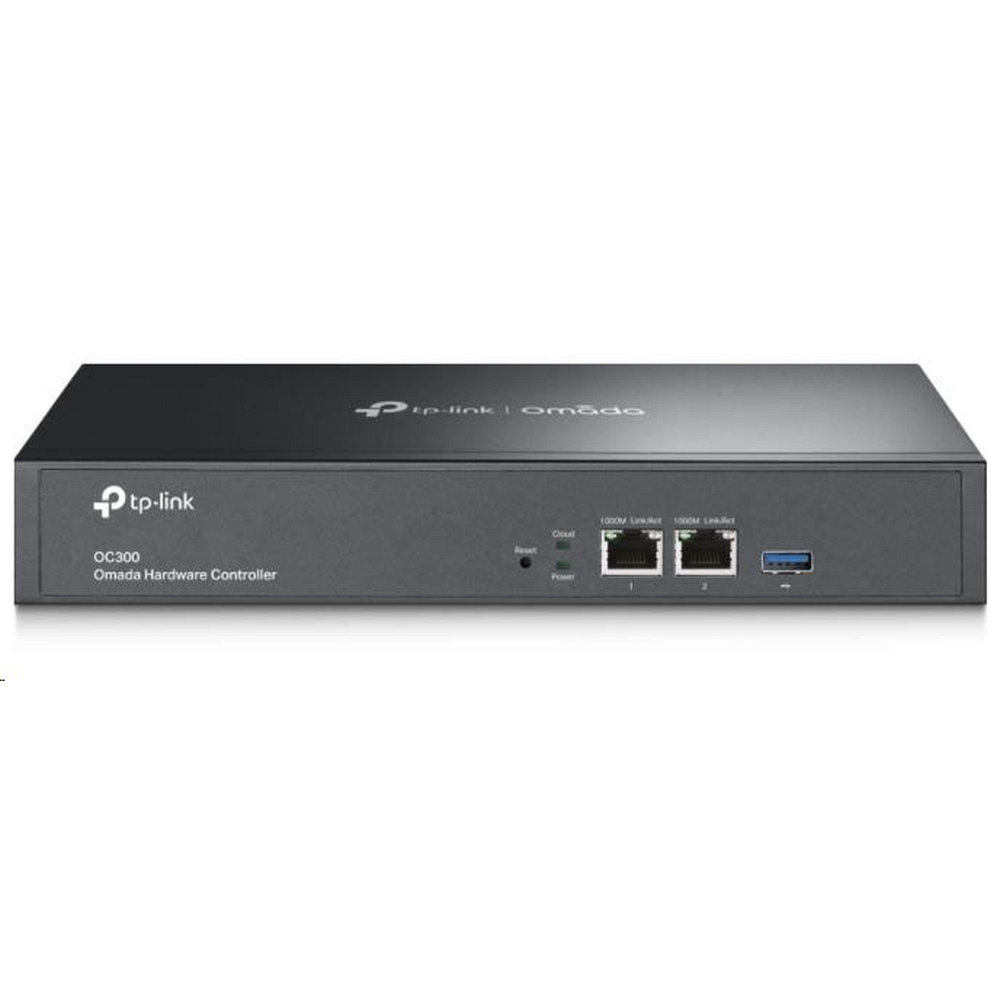

• Omada Hardware Controller OC300
• Quick Installation Guide
• Ethernet Cable
• Power Cord
• Rackmount Kit |
| System Requirements |
Microsoft Windows10, 8, 7,Vista™, XP or MAC OS, NetWare, UNIX or Linux |
| Environment |
• Operating Temperature: 0–50 °C (32–122 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
