| HARDWARE FEATURES |

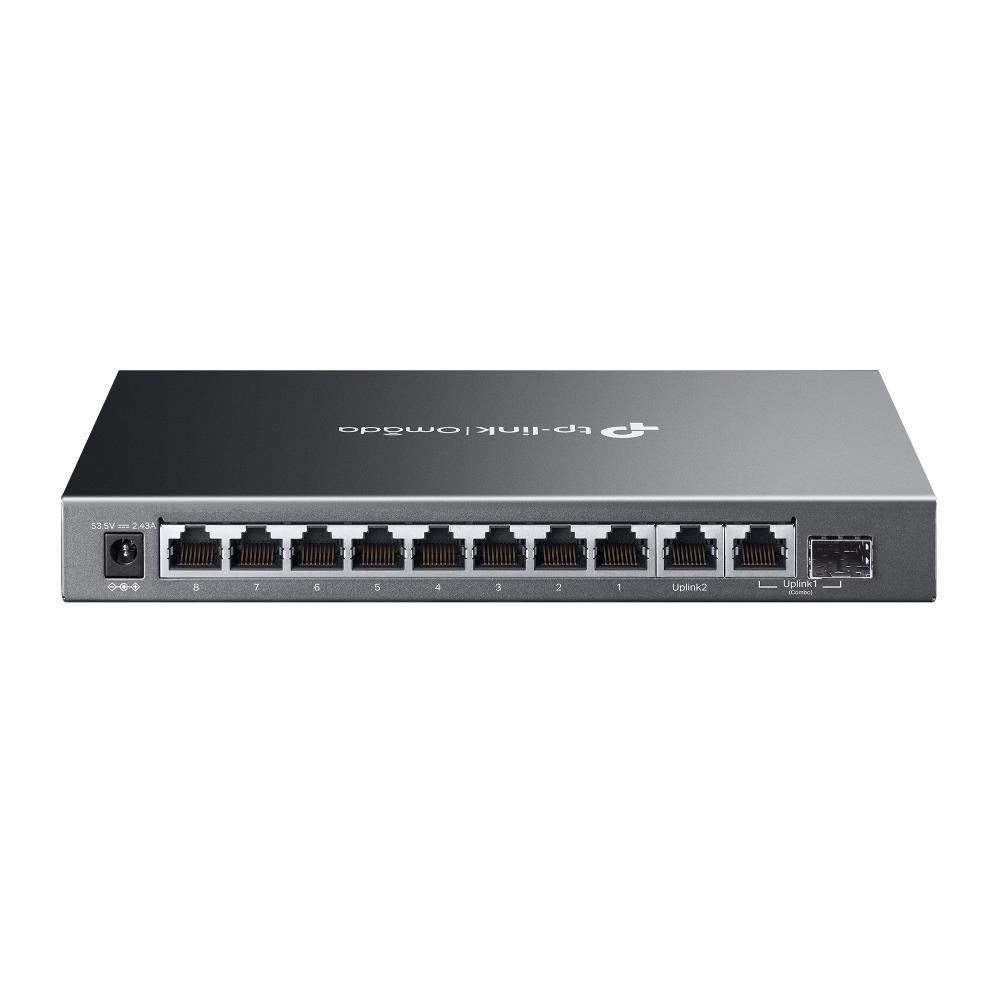

| Interface | • 8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE)
• 1× 10/100/1000 Mbps RJ45 Port
• 1× Gigabit SFP/RJ45 Combo Port
• Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | • Desktop
• Wall Mount |
| Physical Security Lock | ? |
| Power Supply | DC Power Adapter (Output: 53.5 VDC/ 2.43 A) |
| PoE Ports (RJ45) | • Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 8 ports
• PoE Budget: 123W available for all PoE+ ports, 30W max per port
• PoE Auto Recovery‡
• Up to 250m PoE transmission distance** |
| Dimensions ( W x D x H ) | 8.2×4.9×1.0 in (209×126×26 mm)
|
| PERFORMANCE |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB
|
| SOFTWARE FEATURES |
| Quality of Service | • Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control? |
| L2 Features | • Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave |
| VLAN | • MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID |
| Transmission Method | Store-And-Forward
|
| MANAGEMENT |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†
|
| OTHERS |
| Certification | FCC, CE, RoHS |
| Package Contents | • ES210GMP
• Power Adapter
• Installation Guide
• Rubber Feet |
| Environment | • Operating Temperature: 0?~40? (32?~104?)
• Storage Temperature: -40?~70? (-40?~158?)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing |
