| HARDWARE FEATURES |
| Interface | • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)
• 2× 10/100/1000 Mbps RJ45 Port
• 2× Gigabit SFP Slot
• Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | 2 |
| Installation | Rackmountable |
| Physical Security Lock | ? |
| Power Supply | 100–240V AC, 50/60Hz |
| PoE Ports (RJ45) | • Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 16 ports
• PoE Budget: 250W available for all PoE+ ports, 30W max per port
• Fast PoE & Perpetual PoE
• PoE Auto Recovery‡
• Up to 250m PoE transmission distance** |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in.(440 × 180 × 44 mm) |
| Surge Protection | ±6kV
|
| PERFORMANCE |
| Switching Capacity | 40 Gbps |
| Packet Forwarding Rate | 29.76 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB
|
| SOFTWARE FEATURES |
| Quality of Service | • Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control? |
| L2 Features | • Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave |
| VLAN | • MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID |
| Transmission Method | Store-And-Forward
|
| MANAGEMENT |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†
|
| OTHERS |
| Certification | FCC, CE, RoHS |

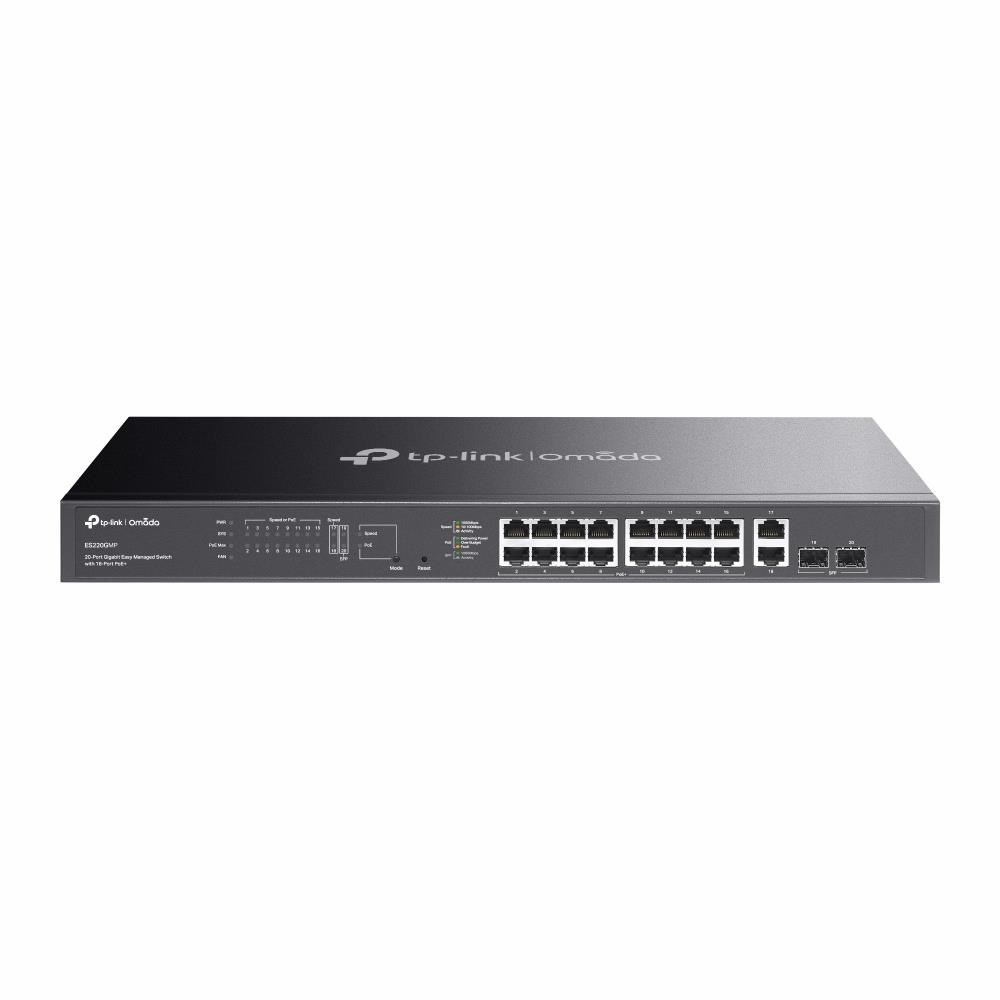

| Package Contents | • ES220GMP
• Power Cord
• Mounting Brackets
• Rubber Feet
• Screws
• Installation Guide |
| Environment | • Operating Temperature: -5?~50? (23?~122?)
• Storage Temperature: -40?~70? (-40?~158?)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing |
