Obrázek TP-Link OMADA switch ES228GMP (26xGbE,2xSFP,24xPoE+,384W)

TP-Link OMADA switch ES228GMP (26xGbE,2xSFP,24xPoE+,384W)

Provedení:Rack mounted 19"; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, L2, Web management/Smart switch; Technologie:Gigabit Ethernet 1000Mbps, Gigabit ethernet + Gigabit optika; Počet portů LAN:26; Podporované standardy PoE:802.3af, 802.3at; PoE budget (W):384; Počet SFP portů:2
Výrobce: TP-link
Dostupnost: Není skladem - je u dodavatele na objednání.
Kód: 324418
Typové označení výrobce : ES228GMP
GTIN (EAN): 1210002600989
dodací lhůta : Na dotaz
6 170,73 Kč bez DPH

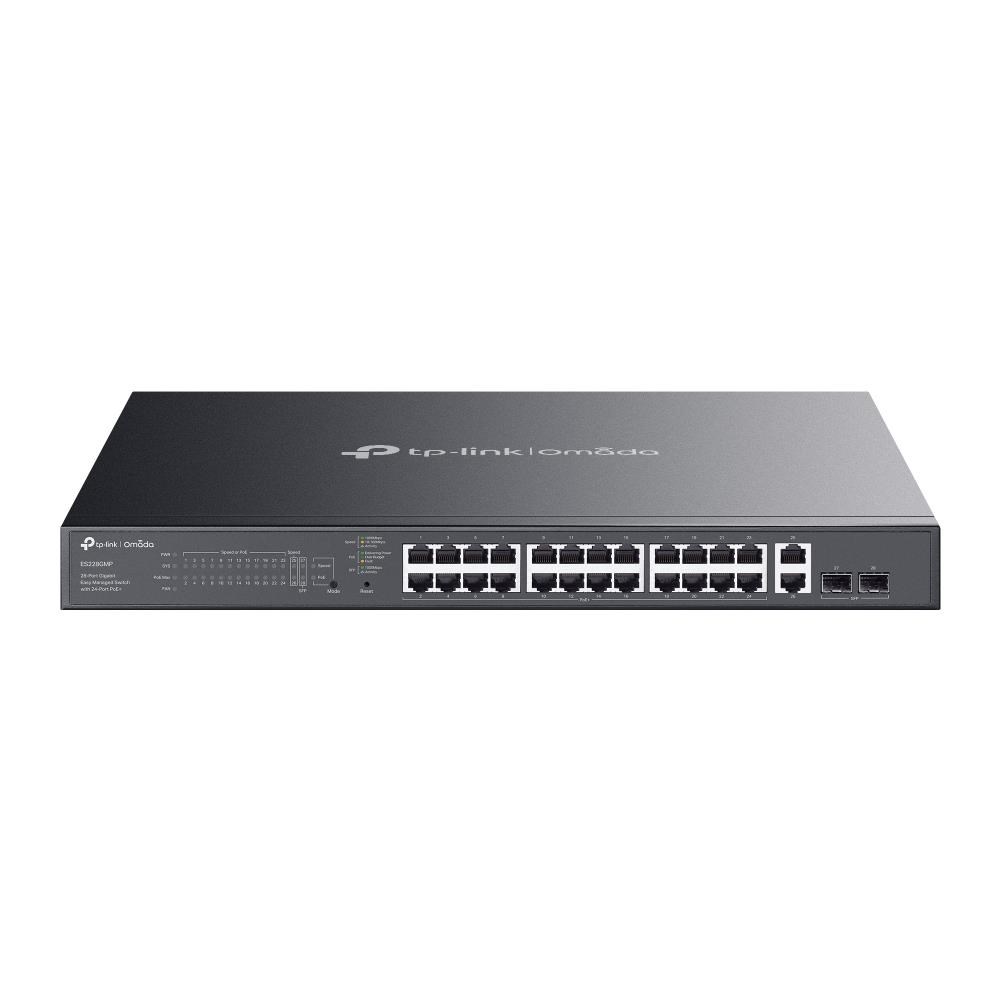

TP-Link OMADA switch ES228GMP

Omada 28-Port Gigabit Easy Managed Switch s 24-Porty PoE+

  • 26× 10/100/1000Mb/s RJ45 portů (24× PoE+ kompatibilní s 802.3af/at)
  • 2× gigabitové SFP sloty
  • Napájecí rozpočet 384 W, až 30 W na každý PoE port
  • Snadné použití: Podpora plug-and-play pro okamžité připojení a jednoduchá konfigurace pro další funkce
  • Centralizovaná cloudová správa přes web nebo aplikaci Omada†
  • Až 250m PoE, QoS, automatické obnovení PoE a izolace portů pro spolehlivou dohledovou síť
  • Automatická prevence smyček, VLAN a IGMP Snooping
  • Odolné kovové provedení a možnost montáže do racku

Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-agile/es228gmp/

Technické specifikace

HARDWARE FEATURES
Interface • 24× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)
• 2× 10/100/1000 Mbps RJ45 Port
• 2× Gigabit SFP Slot
• Auto-Negotiation/Auto MDI/MDIX
Fan Quantity 2
Installation Rackmountable
Physical Security Lock ?
Power Supply 100–240V AC, 50/60Hz
PoE Ports (RJ45) • Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 24 ports
• PoE Budget: 384W available for all PoE+ ports, 30W max per port
• Fast PoE & Perpetual PoE
• PoE Auto Recovery‡
• Up to 250m PoE transmission distance**
Dimensions ( W x D x H ) 17.3 × 13.0 × 1.7 in.(440 × 330 × 44 mm)
Surge Protection ±6kV
PERFORMANCE
Switching Capacity 56 Gbps
Packet Forwarding Rate 41.67 Mpps
MAC Address Table 8K
Packet Buffer Memory 4 Mbit
Jumbo Frame 15 KB
SOFTWARE FEATURES
Quality of Service • Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control?
L2 Features • Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
L2 Multicast • IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN • MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Transmission Method Store-And-Forward
Management Features
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features • Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration†
OTHERS
Certification FCC, CE, RoHS
Package Content • ES228GMP
• Power Cord
• Mounting Brackets
• Rubber Feet
• Screws
• Installation Guide
Environment • Operating Temperature: -5?~45? (23?~113?)
• Storage Temperature: -40?~70? (-40?~158?)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
