| HARDWARE FEATURES |
|
| Interface |
• 16× 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX |
| Network Media |
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100? STP (maximum 100m) |
| Fan Quantity |
Fanless |
| External Power Supply |
External Power Adapter (Output: 53.5 VDC / 2.43 A) |
| Packet Forwarding Rate |
23.8 Mpps |
| PoE Ports (RJ45) |
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–16
• Power Supply: 120 W |
| Mac Address Table |
8K, Auto-learning, Auto-aging |
| Switching Capacity |
32 Gbps |
| Dimensions ( W x D x H ) |
11.3 × 4.4 × 1.0 in (286 × 111.7 × 25.4 mm) |
| Max Power Consumption |
• 11.72 W (220 V / 50 Hz no PD connected) /
11.56 W (110 V / 60 Hz no PD connected)
• 142.51 W (220 V / 50 Hz with 120 W* PD connected) /
144.28 W (110 V / 60 Hz with 120 W* PD connected) |
| Max Heat Dissipation |
• 39.85 BTU/h (220 V / 50 Hz no PD connected) /
39.31 BTU/h (110 V / 60 Hz no PD connected)
• 484.53 BTU/h (220 V / 50 Hz with 120 W* PD connected) /
490.55 BTU/h (110 V / 60 Hz with 120 W* PD connected) |
| SOFTWARE FEATURES |
|
| Advanced Features |
• Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
• Priority Mode Button (Ports 1–4)
• Isolation Mode Button (Ports 1–7 / 8-14)
• PoE Auto Recovery (Ports 1-16)
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping |
| Transfer Method |
Store-And-Forward |
| OTHERS |
|
| Certification |
FCC, CE, RoHS |
| Package Contents |

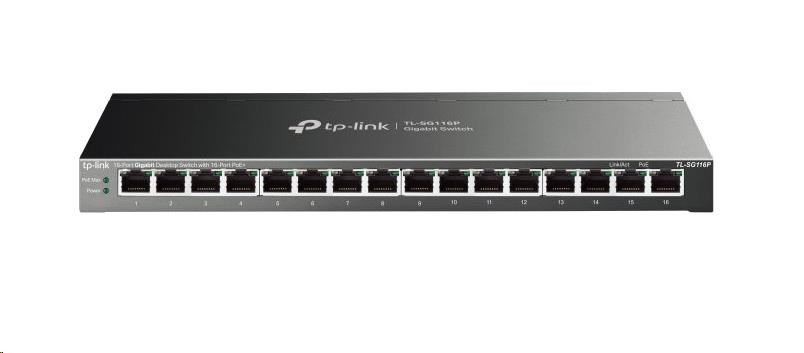

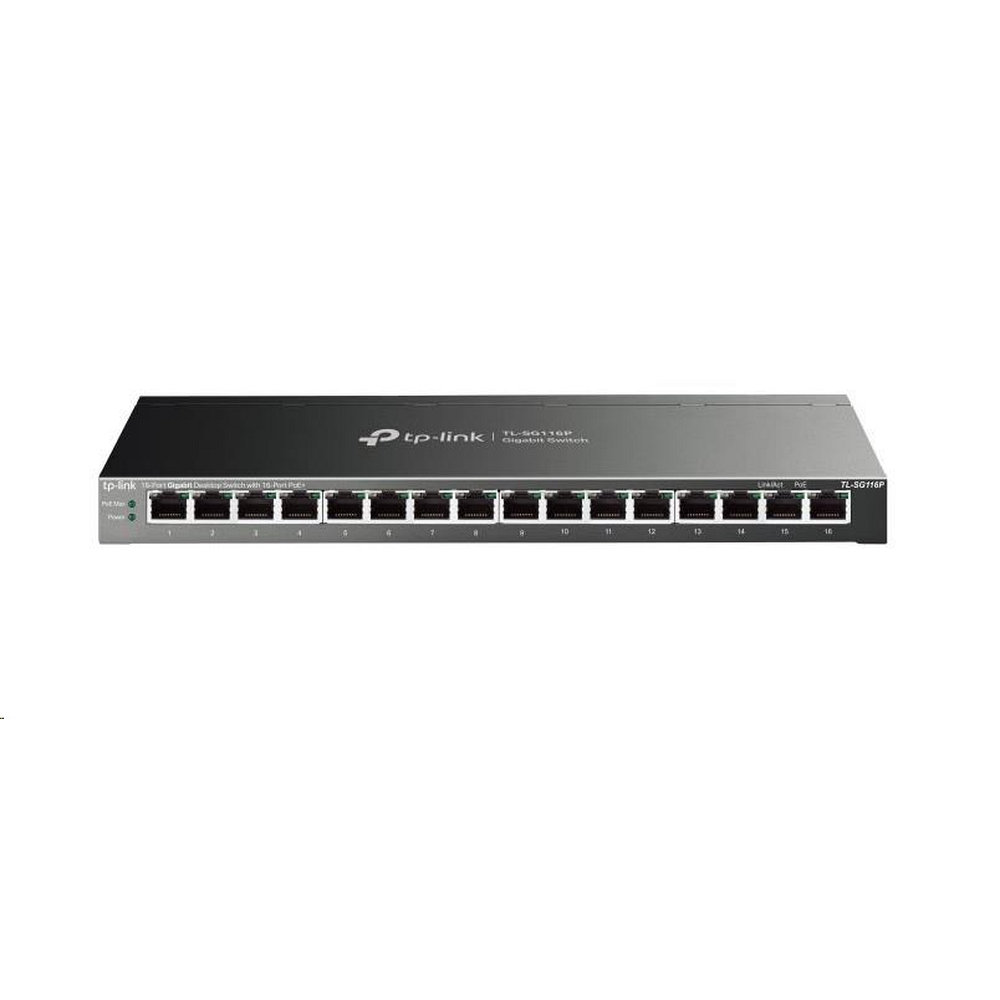

• TL-SG116P
• Power Adapter
• Installation Guide |
| Environment |
• Operating Temperature: 0–40 °C (32–104 °F);
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
