| CAMERA |
| Image Sensor | 1/2.8“ Progressive Scan CMOS Starlight Sensor |
| Lens | Fixed Lens
Focal Length: 2.8 mm
Aperture: F1.6
Field of View: 125.5° (Diagonal), 107.8° (Horizontal), 57.8° (Vertical)
PT Lens
Focal Length: 6.0 mm
Aperture: F1.6
Field of View: 67.1° (Diagonal), 57.8° (Horizontal), 30.1° (Vertical) |
| Night Vision | 850 nm IR LED (40 ft / 12 m), Color Night Vision |
| Day/Night Switch | IR-Cut Filter with Auto-Switching |
| Lighting | / |
| Hub Compatibility | / |
| Interface & Button | 1× RESET Button
1× microSD Card Slot (Up to 512 GB) |
| VIDEO & AUDIO |
| Maximum Resolution | 2304 × 1296 px |
| Frame Rate | 15 fps |
| Digital Zoom | 10.8× |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR
WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 99 dB (Level measured at 4-inch/10-cm distance) |
| STORAGE |
| Local Storage | microSD Card Slot on Camera (Up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| DETECTION and NOTIFICATIONS |
| AI Detection | Motion Detection
Person Detection
Pet Detection
Vehicle Detection
Line-Crossing Detection
Baby Cry Detection
Glass Break Detection
Dog Barks Detection
Cat Meows Detection
Camera Tampering |
| Activity Zones | Yes
*Works with Motion Detection, Person Detection, Pet Detection, and
Vehicle Detection |
| Output Notification | System Notification
System Notification with Snapshot (Tapo Care Services) |
| NETWORK |
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
| Protocol | TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
| Max. Distance Between Hub and Camera/Doorbell | / |
| Ethernet Port | / |
| RTSP | Yes |
| ONVIF | Yes |
| Transmission Rate | 11b: 11 Mbps
11g: 54 Mbps
11n: 72.2 Mbps |
| SECURITY |
| Security | On-Device Machine Learning
128-bit AES Encryption with SSL/TLS
PWPA/WPA2-PSK |
| POWER |
| Power Source | 5 V DC Power Adapter |
| Input Voltage | 100-240 V, 50/60 Hz, 0.3A |
| Output Voltage | 5.0 V, 2.0 A (Type-C Power) |
| Power Cord Length | 3 m |
| Typical Power Consumption | 3.0W |
| Maximum Power Consumption | 9.0 W |
| GENERAL |
| Smart Integration | Google Assistant, Amazon Alexa, Samsung SmartThings |
| Weather Resistance | IP65 |
| Mounting Options | Tabletop
Wall-Mounted
Ceiling-Mounted
Pole-Mounted |
| Operating Temperature | -20 oC ~ 50 oC (-4 °F ~ 122 °F) |
| Storage Temperature | -40 oC ~ 60 oC (-40 °F ~ 140 °F) |
| Operating Humidity | 10% ~ 90% RH, Non-condensing |
| Storage Humidity | 0 ~ 90% RH, Non-condensing |
| Weight | 9.77 oz / 277 g |

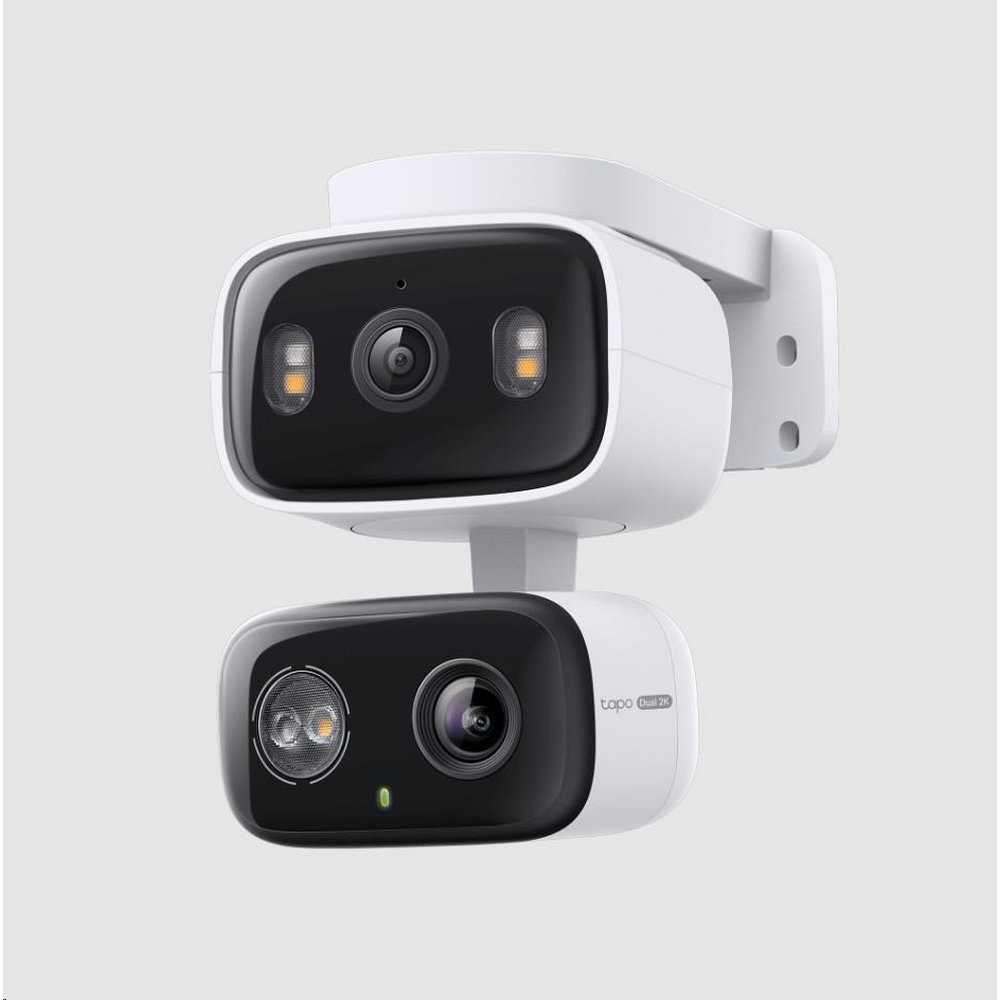

| Package Content | Tapo C246D Camera × 1
Mounting Bracket × 1
Mounting Template Sticker × 1
Mounting Anchors × 4
Mounting Screws × 4
Power Adapter × 1
3 m USB Adapter Cable × 1
Quick Start Guide |
| Dimensions( W X D X H ) | 3.07*3.02*4.20 in (78*76.83*106.83 mm) |
