| CAMERA |
| Image Sensor | 1/3“ |
| Lens | F/NO: 1.61±10%; Focal Length: 3.18mm±5% |
| Night Vision | 850 nm IR LED up to 49 ft/15m |
| Viewing Angle | 113° |
| Resolution | 2K QHD (2560 × 1440 px) |
| AUDIO |
| Audio Communication | 2-way audio |
| Audio Input & Output | Built-in microphone and speaker |
| NETWORK |
| Protocol | TCP/IP, ICMP, DNS, HTTPS, TCP, UDP |
| Wireless Security | WPA/WPA2-PSK |
| Wi-Fi Protocol | IEEE 802.11b/g/n, 2.4 GHz |
| Frequency | 2.4 GHz |
| ACTIVITY NOTIFICATIONS |
| Input Trigger | Motion detection, Person
detection, Pet detection, Vehicle detection. |
| Output Notification | Notification,Snapshot(Tapo care),Clips(Tapo
care). |
| ENVIRONMENT |
| Operating Temperature | -20?~45?(-4°F ~113 °F ) |
| Storage Temperature | -20?~60? (-4°F~140°F) |
| Operating Humidity | 10%~90%RH, Non-condensing |
| Storage Humidity | 5%~90%RH, Non-condensing |
| PACKAGE CONTENTS |

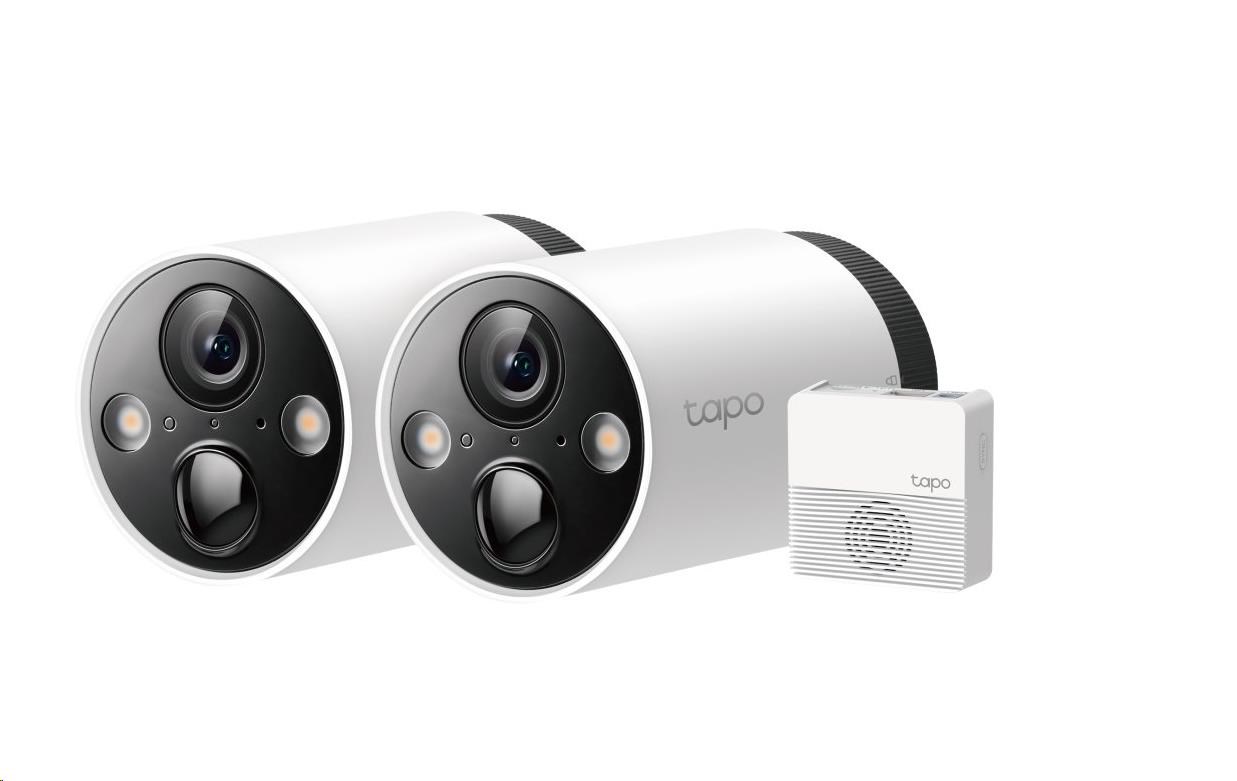

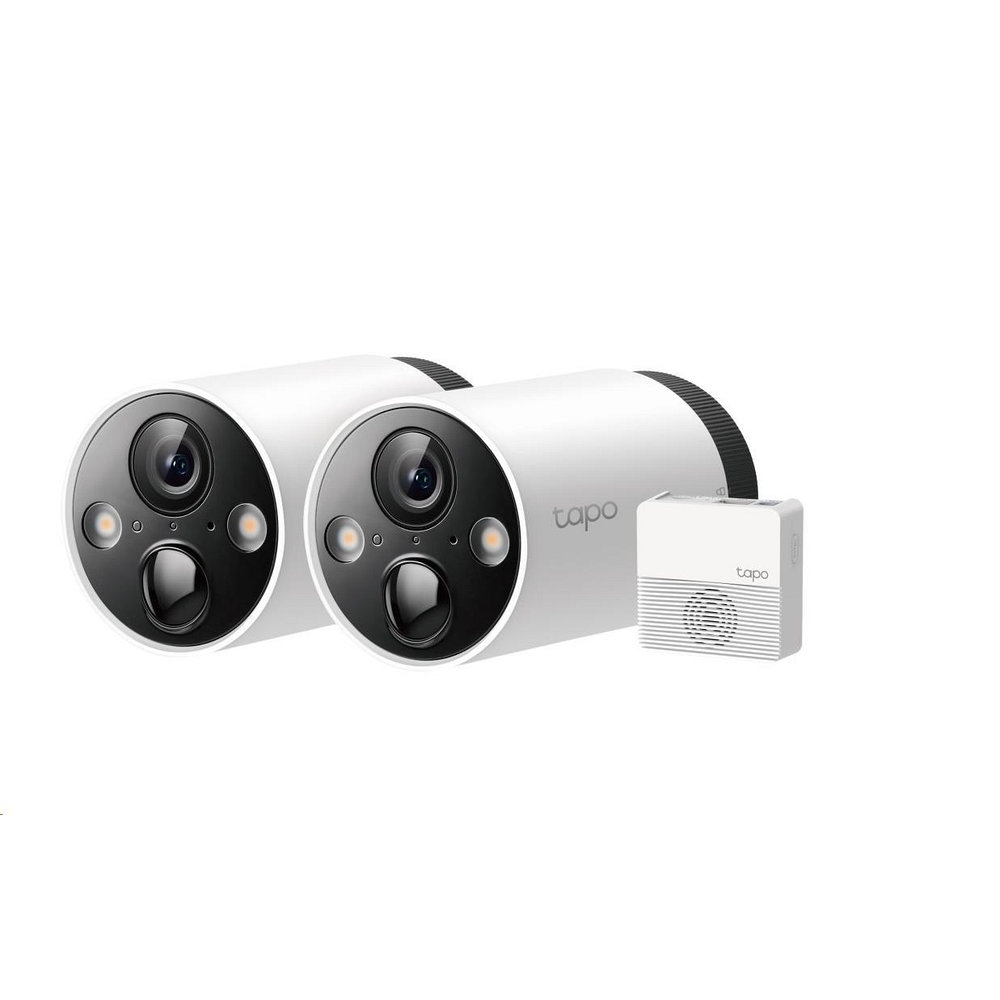

| Package Contents | Tapo C420 Cameras (Battery Included)
Tapo H200 Hub
USB Adapter
USB Adapter Cable
DC Power Adapter
Mounting Screws
Mounting Templates
Camera Brackets
Quick Start Guide
RJ45 Ethernet Cable |
| HARDWARE |
| Button | Camera Button: Reset/SYNC Button
Hub Button: Reset Button; SYNC Button |
| Indicator LED | Camera Indicator LED: System LED
Hub Indicator LED: System LED |
| Adapter Input | Camera Adapter Input: 100-240V, 50/60Hz
Hub Adapter Input: 100-240V, 50/60Hz, 0.3A |
| Adapter Output | Camera Adapter Output: 5.0V, 1.0A
Hub Adapter Output: 9.0V, 0.85A |
| Dimensions (W x D x H) | Camera Dimensions: 4.35 x 2.52 x 2.52in.
(110.6*64.2*64.2mm)
Hub Dimensions (L x W x H): 2.8 x 2.8 x 1.2 in.
(71.45*71.45*31.25mm) |
| VIDEO/IMAGE |
| Video Compression | H.264 |
| Frame Rate & Resolutions | 15/20 fps |
| Video Streaming | 2K QHD |
