CAMERA |
Image Sensor | 1/2.8" Progressive Scan CMOS Sensor |
Lens | Focal Length: 4.0 mm
Aperture: F1.6
Field of View: 100.6° (Diagonal), 84.4°(Horizontal), 44.3°(Vertical) |
Motion Range | Pan Mechanical Range: 340° (360° Pan Coverage)
Tilt Mechanical Range: 90° (130° Tilt Coverage) |
Night Vision | 2× 850 nm IR LEDs (33 ft / 10 m)
Full-Color Night Vision |
Lighting | 2× Built-in Spotlights |
Interface & Button | 1× Power Button
1× RESET Button
1× MicroSD Card Slot (Up to 512GB) |
SOLAR PANEL |
Connection Capacity | A solar panel can only connect to one camera. |
Output Port | Type-C |
VIDEO & AUDIO |
Maximum Resolution | 2K 3MP(2304×1296 px) |
Frame Rate | 15 fps |
Digital Zoom | 45879 |
Live View | YES |
Image Enhancement | 3DNR
WDR |
Audio Input & Output | Built-in Microphone and Speaker |
Audio Communication | Two-Way Audio with Noise Cancellation |
Siren Volume | 97.2 dBA (Level measured at 10 cm distance)
68.2 dBA (Level measured at 300 cm distance) |
STORAGE |
Local Storage | MicroSD Card Slot on Camera (Up to 512 GB, microSD card not included) |
Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
DETECTION and NOTIFICATIONS |
Sensor | Single Motion Sensor |
AI Detection | Motion Detection
Person Detection |
Activity Zones | Yes |
Output Notification | System Notification
System Notification with Snapshot (Tapo Care Services) |
NETWORK |
Network Connectivity | Connect via Wi-Fi |
Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
SECURITY |
Security | 128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK |
POWER |
Power Source | Built-in Rechargeable Lithium-ion Battery
Solar Panel: Tapo A201(included) |
Input Voltage | Adapter Input: 100-240 V, 50/60 Hz
(Not include) |
Output Voltage | Adapter Output: 5.0 V, 1.0 A (Not include)
Solar Panel Max Charging Voltage: 5.2 V
Solar Panel Max Charging Power: 2.5 W |
GENERAL |
Smart Integration | Google Assistant, Amazon Alexa |
Weather Resistance | IP65 for both camera and solar panel |
System Requirements | Tapo App: iOS 12.0 or higher, Andriod 7.0 or higher |
Mounting Options | Ceiling-Mounted
Wall-Mounted
Pole-Mounted (Pole-Mounting loops required but not included) |
Operating Temperature | -20°C to 45°C (-4°F to 113°F) |
Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
Operating Humidity | 10%~90% RH, Non-condensing |
Storage Humidity | 0%~90% RH, Non-condensing |
Charging Temperature | 0°C to 45°C (32°F to 113°F) |
Dimensions ( W x D x H ) | Camera Dimensions: 130.88 × 116.09 × 84.06 mm (5.15 × 4.57 × 3.31 in.)
Solar Panel Dimensions: 173.4 x 120.4 x 15.7 mm (6.83 x 4.74 x 0.618 in.) |

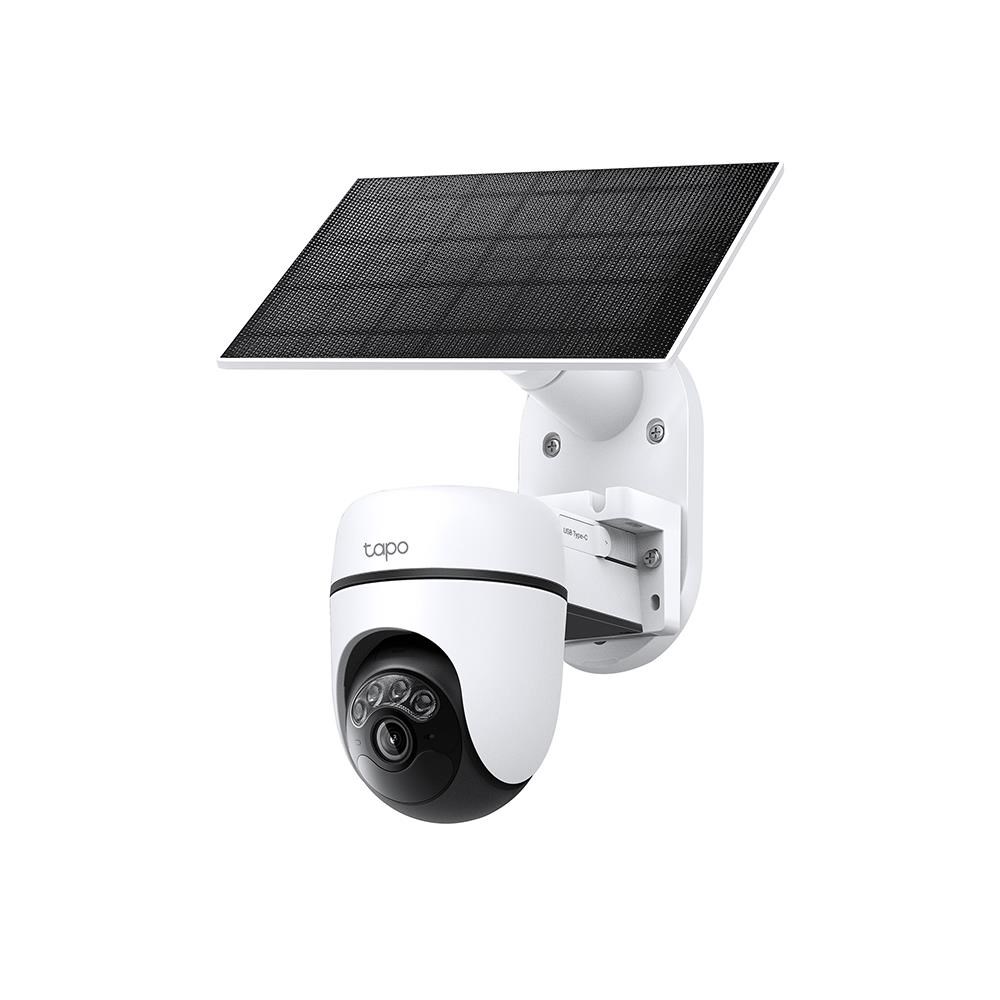

Package Content | Tapo C610 Camera × 1
Tapo A201 Solar Panel × 1
Tapo A201 Solar Panel Bracket × 1
Base Cover × 1
USB Adapter Cable × 1
Extension Wire × 1
Cable Zip Tie × 1
Mounting Screws and Anchors
Mounting Template Stickers
Quick Start Guide |
Certifications | CB, CE, FCC, DOE, CEC, RCM, KC, JFR,VCCI,NCC, BSMI, NTRA, IP65 |
