| HARDWARE FEATURES |
|
| Plug Type |
EU |
| Standards and Protocols |
HomePlug AV1.1, HomePlug AV2.0,IEEE 1901,IEEE 802.3,IEEE 802.3x, IEEE 802.3u, IEEE 802.3ab |
| Interface |
Gigabit Ethernet Ports, 1 Power Socket |
| Button |
Pair Button |
| Power Consumption |
Maximum: 5.5W Typical: 5.3W Standby: 1.4W |
| LED Indicator |
Power, Powerline, Ethernet |
| Dimensions ( W x D x H ) |
5.2 x 2.8 x 1.7 in. (131 x 71x 42 mm) |
| Range |
300 meters over electrical circuit |
| Power Output to Integrated Socket |
16 A |
| SOFTWARE FEATURES |
|
| Modulation Technology |
OFDM (PLC) |
| Encryption |
Powerline Security: 128-bit AES |
| OTHERS |
|
| Certification |
CE, RoHS |
| Package Contents |

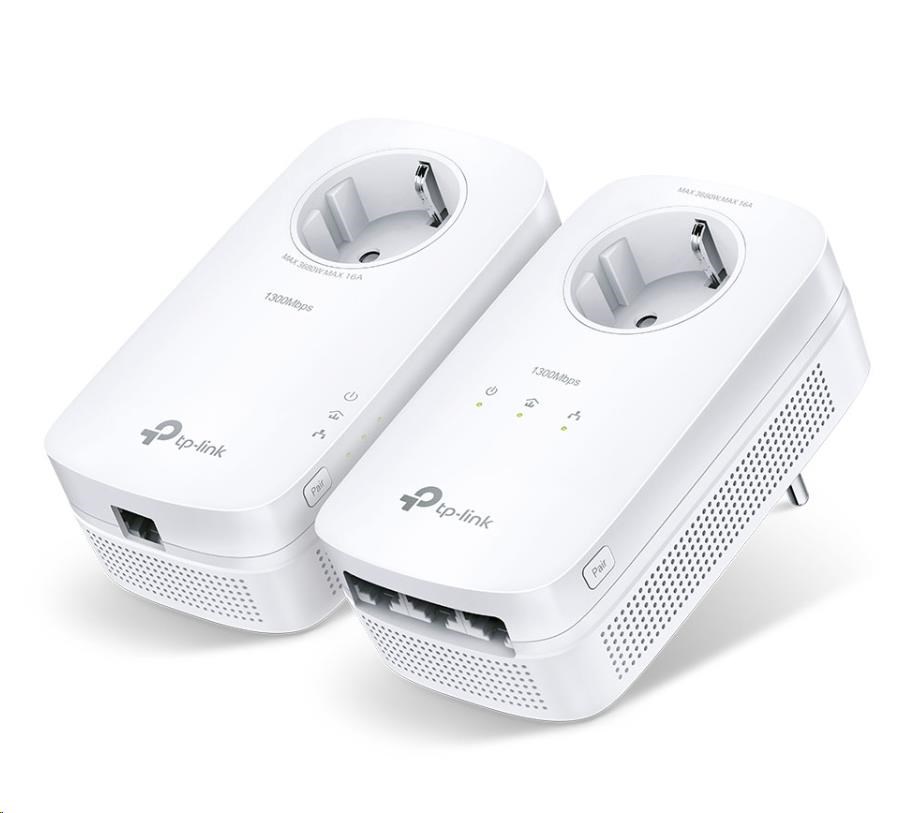

Powerline Adapter TL-PA8010P, TL-PA8030P 2 × Ethernet Cable 1 × Quick Installation Guide |
| System Requirements |
System Requirements: Windows 2000/XP/2003/Vista, Windows 7/8/8.1/10, Mac, Linux · System Requirements for tpPLC Utility: Windows XP/Vista/7/8/8.1/10 and Mac OS X (10.7 or later) |
| Environment |
Operating Temperature: 0°C~40°C (32°F ~104°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
