| HARDWARE FEATURES | |
| Plug Type | EU |
| Standards and Protocols | HomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.11b/g/n |
| Interface | 2*10/100Mbps Ethernet Port |
| Button | Pair, Reset, Wi-Fi/Wi-Fi Clone |
| Power Consumption | Maximum: 5.6W
Typical: 5.2W |
| LED Indicator | Power, Powerline, Ethernet, Wi-Fi |
| Dimensions ( W x D x H ) | 2.1 × 1.6 ×3.7 in (54 × 40 × 94 mm) |
| Range | Up to 300 meters/1000 feet over existing electrical wiring |
| SOFTWARE FEATURES | |
| Modulation Technology | OFDM (PLC) |
| Encryption | Powerline Security: 128-bit AES Encryption
Wireless Security: WPA-PSK / WPA2-PSK, WEP Encryptions |
| OTHERS | |
| Certification | CE, RoHS |

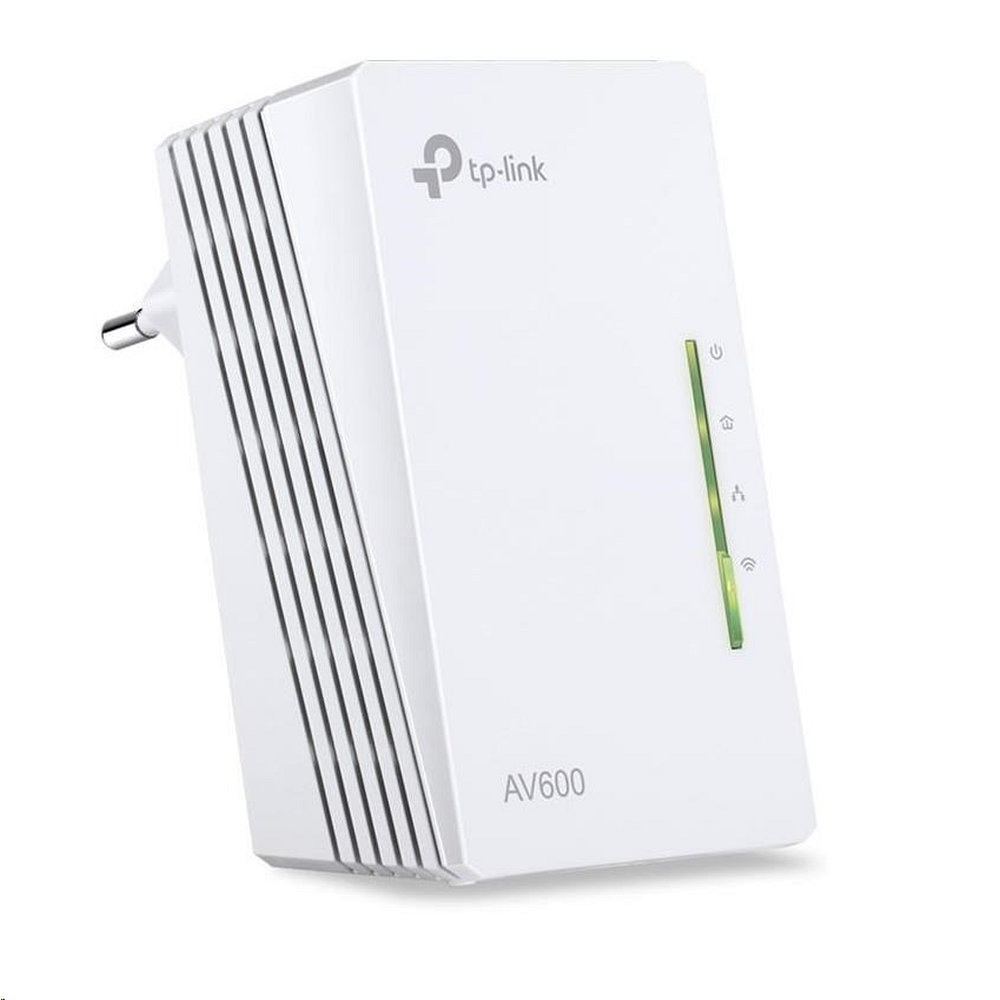

| Package Contents | AV600 Powerline Wi-Fi Extender: 1 × TL-WPA4220
1 × Ethernet Cable
1 × Quick Installation Guide |
| System Requirements | System Requirements:
Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux
· System Requirements for tpPLC Utility:
Windows 10/8.1/8/7/Vista/XP and Mac OS X (10.7 or later) |
| Environment | Operating Temperature: 0 °C~40 °C (32 °F~104 °F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
