| WIRELESS |
| WiFi Speeds | BE15000
• 6 GHz: 11528 Mbps (802.11be)
• 5 GHz: 2882 Mbps (802.11be)
• 2.4 GHz: 688 Mbps (802.11be) |
| WiFi Range | 4 Bedroom Houses
6× Optimally Positioned Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage |
| WiFi Capacity | High
Tri-Band
Allocate devices to different bands for optimal performance
OFDMA
Simultaneously communicates with multiple clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
8 Streams
Connect your devices to more bandwidth |
| Working Modes | • Router Mode
• Access Point Mode |
| Advanced Features | • Multi-Link Operation (MLO)
• 320 MHz Channel
• 4K-QAM
• Multi-RUs
• EasyMesh-Compatible
• Works with Alexa and Google Assistant
• IoT Network |
| SECURITY |
| Network Security | • SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway
• HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner |
| Guest Network | • 6 GHz Guest Network
• 5 GHz Guest Network
• 2.4 GHz Guest Network |
| VPN Server | • OpenVPN Server
• PPTP VPN Server
• L2TP VPN Server
• WireGuard VPN Server |
| VPN Client | • Open VPN Client
• PPTP VPN Client
• L2TP VPN Client
• WireGuard VPN Client |
| WiFi Encryption | • WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x) |
| HARDWARE |
| Ethernet Ports | • 1× 10 Gbps WAN
• 1× 2.5 Gbps LAN
• 3× 1 Gbps LAN |
| USB Support | 1× USB 3.0
• Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32
• Supported Functions:
FTP Server
Media Server
Samba Server |
| Buttons | • Power On/Off Button
• Wi-Fi On/Off Button
• LED Button
• WPS Button
• Reset Button |
| Power | 12 V ? 3.3 A |
| SOFTWARE |
| Protocols | • IPv4
• IPv6 |
| Service Kit | HomeShield
Learn More> |
| EasyMesh | Compatible with EasyMesh |
| Parental Controls | HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports |
| WAN Type | • Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | • Auto Firmware Upgrade
• TP-Link ID
• DDNS |
| NAT Forwarding | • Port Forwarding
• Port Triggering
• DMZ
• UPnP |
| IPTV | • IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN |
| DHCP | • Address Reservation
• DHCP Client List
• Server |
| DDNS | • TP-Link
• NO-IP
• DynDNS |
| Management Features | • Tether App
• Webpage |
| OTHER |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access) |
| Certifications | CE, FCC, RoHS |
| Environment | • Operating Temperature: 0?~40? (32? ~104?)
• Operating Humidity: 10%~90% non-condensing |
| PHYSICAL |
| Dimensions (W×D×H) | 3.0 × 9.1 × 8.0 in (76 × 231.7 × 203 mm) |

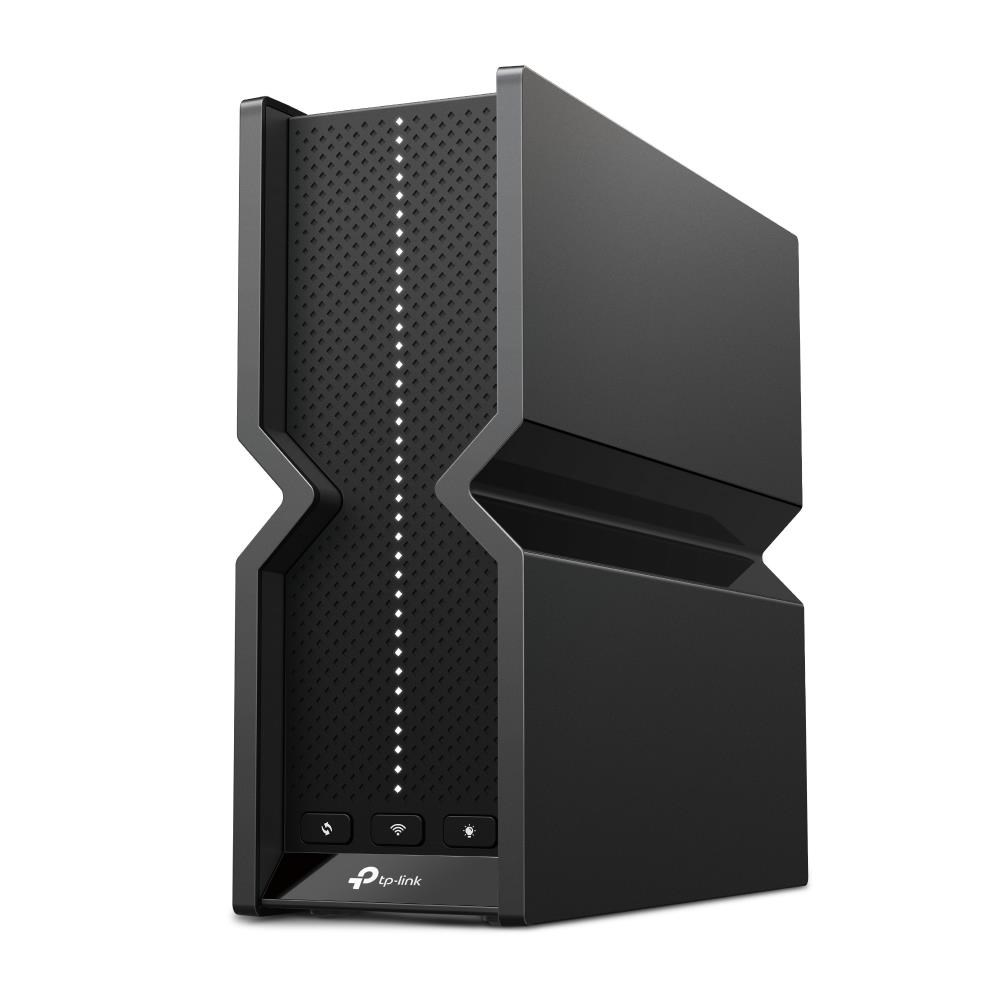

| Package Content | • Wi-Fi 7 Router Archer BE700
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide |
