| HARDWARE FEATURES |
| Interface | 1× Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE) |
| Button | Reset |
| Power Supply | • 802.3at PoE
• 48V Passive PoE |
| Max. Power Consumption | • EU: 12.5W (802.3at PoE or Passive PoE)
• US: 14.7W (802.3at PoE or Passive PoE) |
| Dimensions ( W x D x H ) | 8.2 × 2.3 × 9.1 in (207.5 × 58 × 230 mm) |
| Antenna | Built-in Directional Antennas:
• 2.4 GHz: 2× 8 dBi
• 5 GHz: 2× 10 dBi
Beamwidth: 120° Horizontal; 30° Vertical |
| Bluetooth | Yes |
| Weatherproof Enclosure | IP68 |
| Mounting | Optional bracket accessory APM-100:
Supports vertical ±45° , horizontal ±45° adjustment
Note: Optional bracket accessories need to be purchased separately
|
| WIRELESS FEATURES |
| Coverage | • 2.4 GHz: 200+ m*
• 5 GHz: 500+ m* |
| Concurrent Clients | 250+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz, 5 GHz |
| Signal Rate | 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)† |
| Wireless Functions | • 1024-QAM
• DL/UL OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 on each band)
• Enable/Disable Wireless Radio
• Enable/Disable SSID Broadcast
• Guest Network
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• 2 × 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO
• Omada Mesh§
• Seamless Roaming(802.11k/v/r)§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• RADIUS Accounting
• MAC Authentication
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics
• Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: < 20 dBm (2.4GHz, EIRP); < 23dBm (5 GHz, band1 & band 2, EIRP);< 30 dBm (5 GHz,band 3, EIRP);
• FCC: < 30 dBm (2.4 GHz); < 30 dBm (5 GHz)
|
| Management Features |
| Omada App | Yes |
| Restore & Backup | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller
• Omada Software Controller
• Omada Cloud-based Controller
• Omada APP |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Multi-site Management | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller
|
| OTHERS |
| Certification | CE, FCC, RoHS |

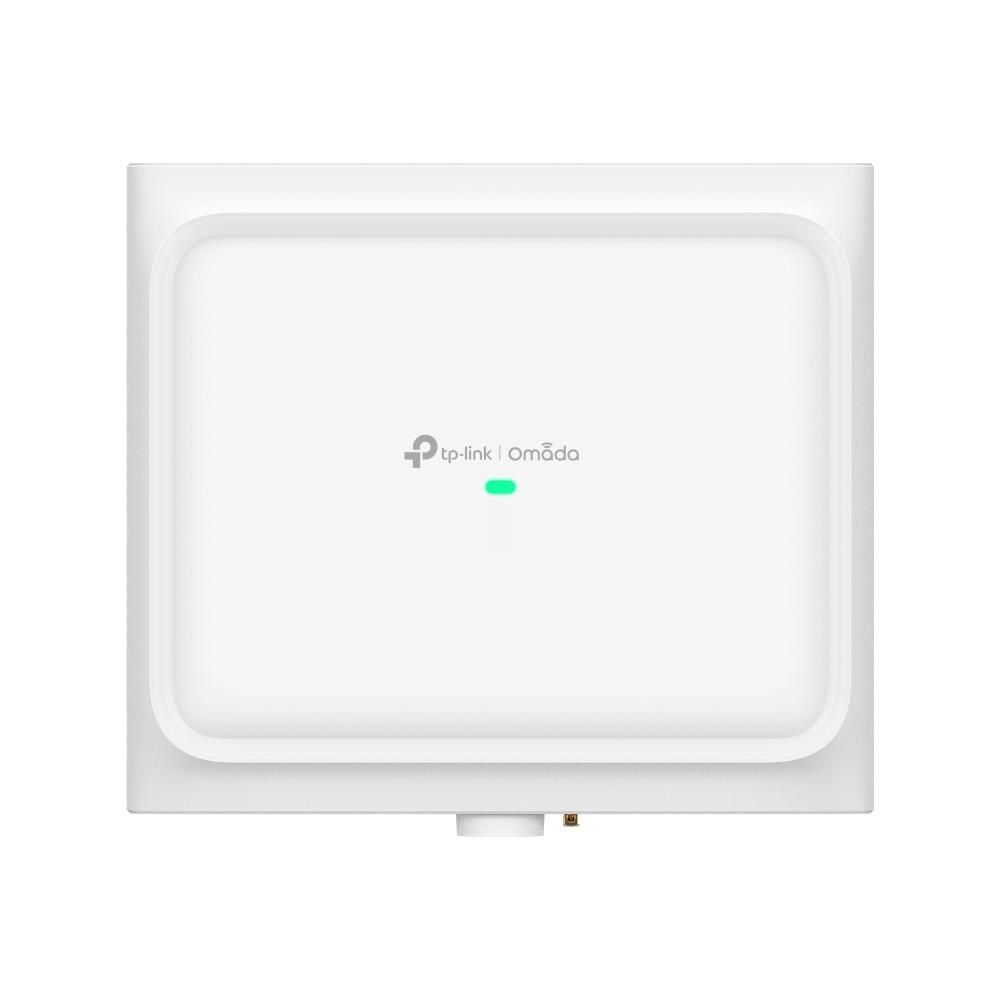

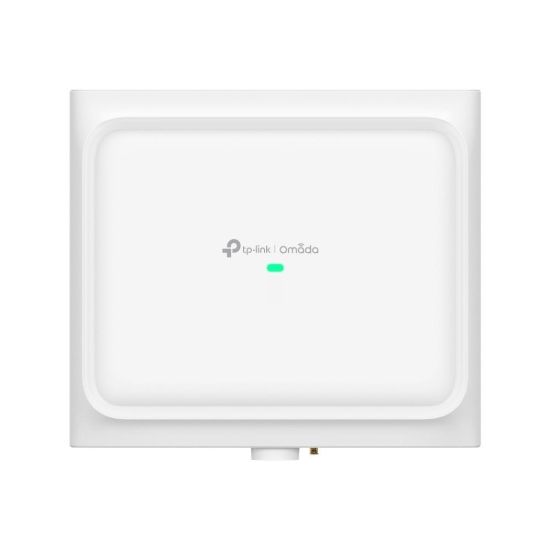

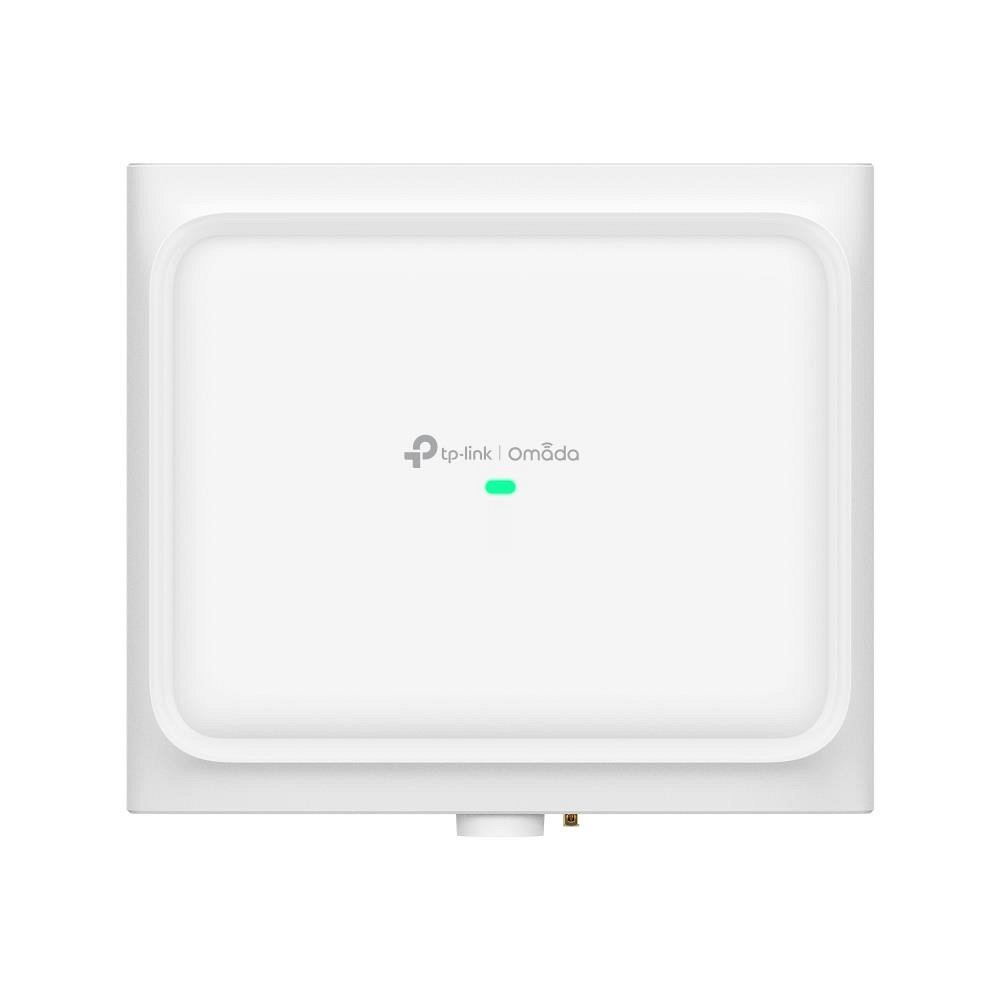

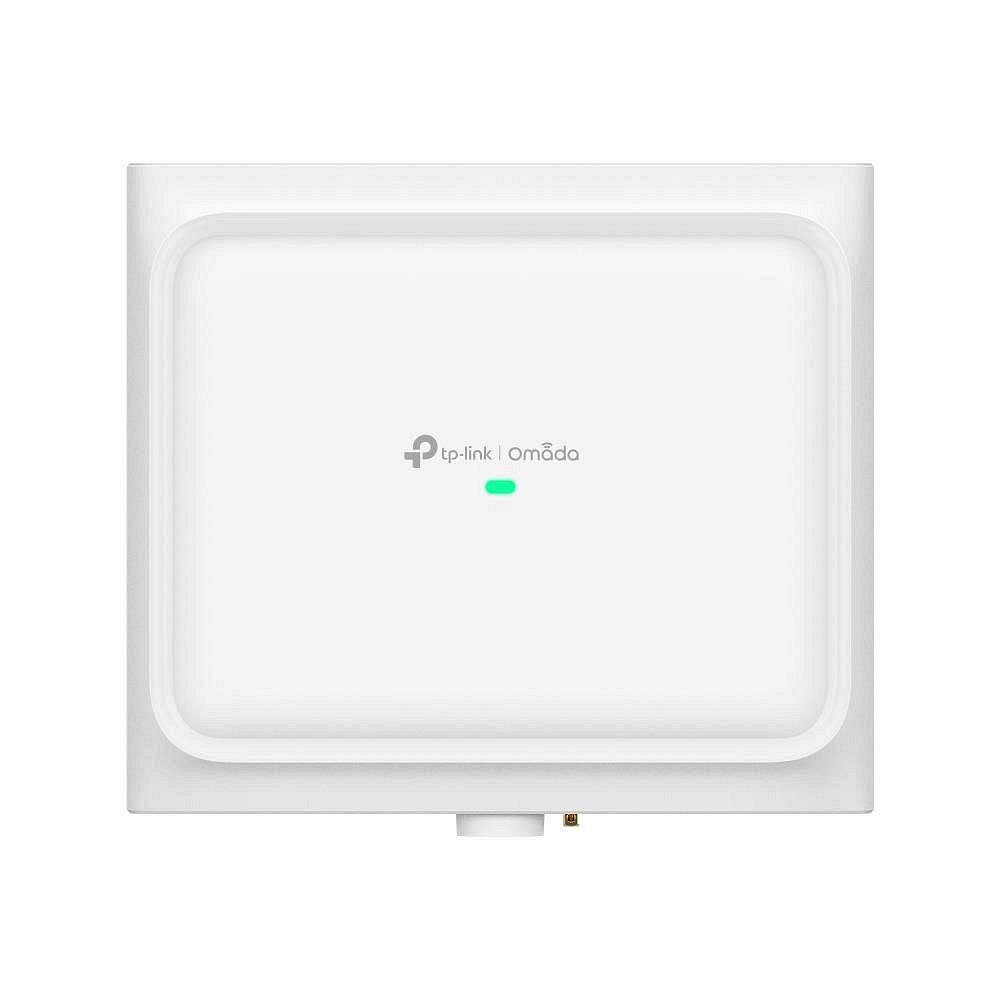

| Package Content | • Access Point EAP650 D120-Outdoor
• Mounting Kits
• Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: -30–70 ? (-22–158 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
