CAMERA |
Image Sensor | 1/2.8” Progressive Scan CMOS Sensor |
Lens | Focal Length: 2.4 mm
Aperture: F2.2
Field of View: 160 (Diagonal),145°(Horizontal), 83°(Vertical) |
Night Vision | 2× 850 nm IR LEDs (25 ft, 7.6 m)
Black and White Image |
Interface & Button | 1× RESET Button
1× Doorbell Button
1× microSD Card Slot
1× USB Type-C Port |
VIDEO & AUDIO |
Maximum Resolution | 2K 3MP (2304 × 1296px) |
Frame Rate | 15 fps |
Digital Zoom | 10x |
Video Compression | H.264 |
Live View | Yes |
Image Enhancement | 3DNR
WDR |
Audio Input & Output | Built-in Microphone and Speaker |
Audio Communication | Two-Way Audio with Noise Cancellation |
STORAGE |
Local Storage | MicroSD Card Slot on Camera (Up to 512 GB) |
Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
DETECTION and NOTIFICATIONS |
Sensor | Single PIR Motion Sensor
Motion Detection Range: 25 ft |
AI Detection | Person and Motion Detection |
Activity Zones | Yes |
Output Notification | System Notification
System Notification with Snapshot (Tapo Care Services) |
NETWORK |
Network Connectivity | Connect via Wi-Fi |
Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
SECURITY |
Security | On-Device Machine Learning
128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK |
POWER |
Power Source | 5200mAh Built-in Rechargeable Lithium-ion Battery
Optional Solar Panel: Tapo A200, A201, A202 (Sold separately) |
Input Voltage | Doorbell Battery Pack Adapter Input: 100-240 V, 50/60 Hz |
Output Voltage | Doorbell Battery Pack Adapter Output: 5.0 V, 1.0 A |
GENERAL |
Smart Integration | Google Assistant, Amazon Alexa |
Weather Resistance | IP54 |
System Requirements | Tapo App: iOS 9.0 or higher, Android 4.4 or higher |
Mounting Options | Stick to a Wall
Mount to a Wall |
Operating Temperature | -20?~45? |
Storage Temperature | -40?~60? |
Operating Humidity | 10%~90% RH, Non-condensing |
Storage Humidity | 0~90% RH, Non-condensing |
Dimensions ( W x D x H ) | Doorbell Dimensions: 5.51× 1.81 × 1.19 in (140*46*30.2mm) |

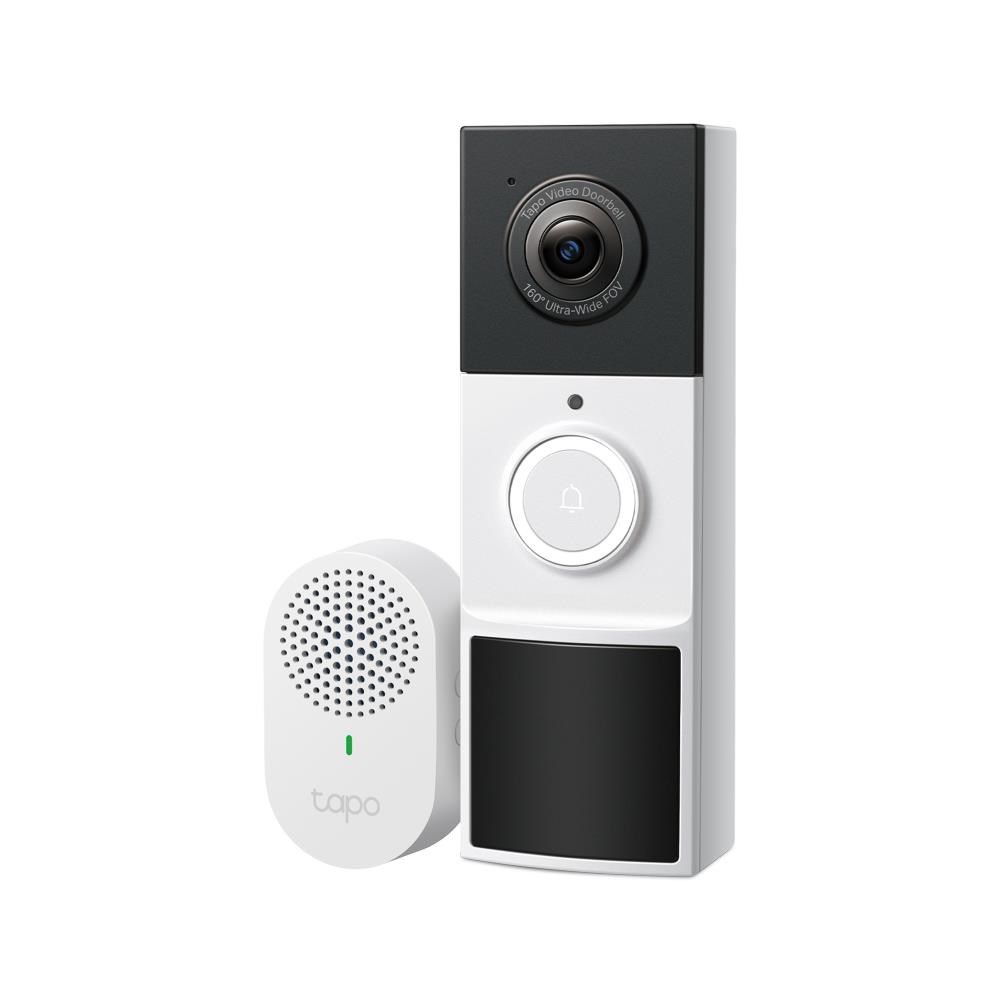

Package Content | Tapo Video Doorbell × 1
Mounting Brackets × 1
Horizontal Mounting Wedge× 1
3M Adhesive× 1
Foam Pad× 1
Screws and Anchors
USB Cable× 1
Mounting Template Sticker × 1
Quick Start Guide |
Certifications | CE, RoHS, RCM, R-NZ, FCC, EAC, Triman, UKCA |
